Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr Texas Instruments
Package Box
Product Status Active
Main Purpose DC/DC, Step Down
Outputs and Type 2, Non-Isolated
Voltage - Output 1.2V, 1.8V
Current - Output 3A, 2A
Voltage - Input 4.5V ~ 16V
Regulator Topology Buck
Frequency - Switching 300kHz ~ 1.4MHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part TPS65270
Base Product Number TPS65270
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 937302-TPS65270EVM
Ultra Librarian 3D Model Ultra Librarian TPS65270EVM CAD Model

Description

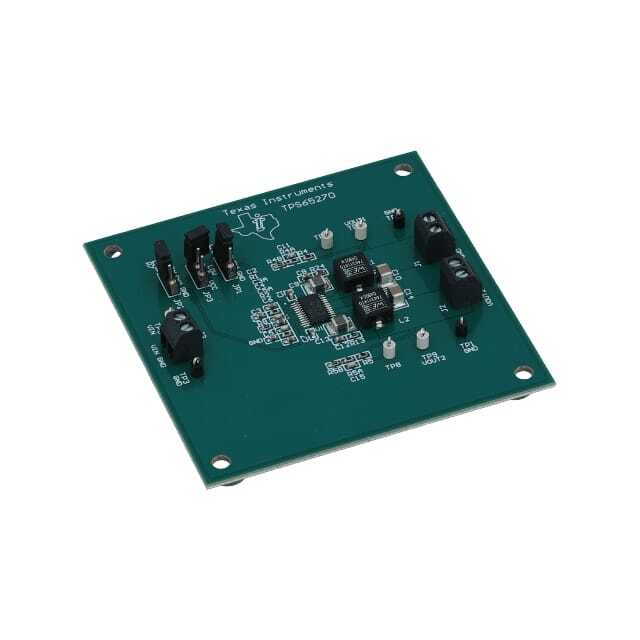

The TPS65270EVM from Texas Instruments is a fully-integrated evaluation module that showcases the capabilities and robust features of the TPS65270 PMIC (Power Management Integrated Circuit). Designed for a wide range of applications, including consumer electronics, automotive, and industrial systems, the TPS65270EVM offers a versatile platform for developers and engineers to test and validate the TPS65270 PMIC's performance in real-world scenarios.

Key Features

  • Dual Synchronous Step-Down Converter: The EVM includes two highly efficient, adjustable, step-down converters that can deliver up to 2A and 1A of continuous output current, respectively.
  • Multiple Output Rails: It supports multiple output voltage rails, providing the flexibility needed for powering various components in a system.
  • Integrated LDOs: Two low-dropout linear regulators are included for additional low-noise power rails, ideal for sensitive analog or RF circuits.
  • Programmable Sequencing: The onboard sequencing engine allows for programmable power-on and power-off sequences, ensuring proper startup and shutdown procedures for complex systems.
  • Thermal Protection: The TPS65270EVM comes with built-in thermal shutdown protection to safeguard the system under extreme conditions.
  • Adjustable Switching Frequency: The switching frequency of the converters is adjustable, allowing engineers to optimize the performance for their specific application needs.
  • Comprehensive Evaluation Kit: The EVM includes all necessary hardware for immediate setup and testing, including connectors, jumpers, and test points for easy access to all functions.

Applications

The versatility of the TPS65270EVM makes it suitable for a variety of applications, including:

  • Portable and Battery-Powered Devices
  • Automotive Infotainment and Telematics
  • Industrial Control Systems
  • Networking and Telecommunications Equipment
  • Consumer Electronics

Conclusion

With its comprehensive feature set and flexible design, the TPS65270EVM from Texas Instruments is an invaluable tool for designers looking to explore the functionality and optimize the use of the TPS65270 PMIC in their own products. Whether for prototyping or educational purposes, this evaluation module provides a solid foundation for developing efficient and reliable power management solutions.
