The Texas Instruments TPS60252RTER is a high-performance, charge pump-based, constant current LED driver designed to cater to a wide range of lighting applications. This versatile component is particularly suited for portable devices with its compact size and efficient power management capabilities.

Key Features

• Input Voltage Range: The TPS60252RTER operates over a 2.7V to 5.5V input voltage range, making it ideal for battery-powered devices.
• Output Current: It provides up to 180mA of output current, which can be distributed among several LEDs.
• High Efficiency: This LED driver utilizes a 1x/1.5x fractional charge pump to ensure high efficiency across a wide range of input voltages.
• Dimming Control: It supports both analog and pulse-width modulation (PWM) dimming control, offering flexible brightness options for various lighting needs.
• Thermal Protection: The device integrates thermal shutdown protection, ensuring safe operation and longevity of the product.

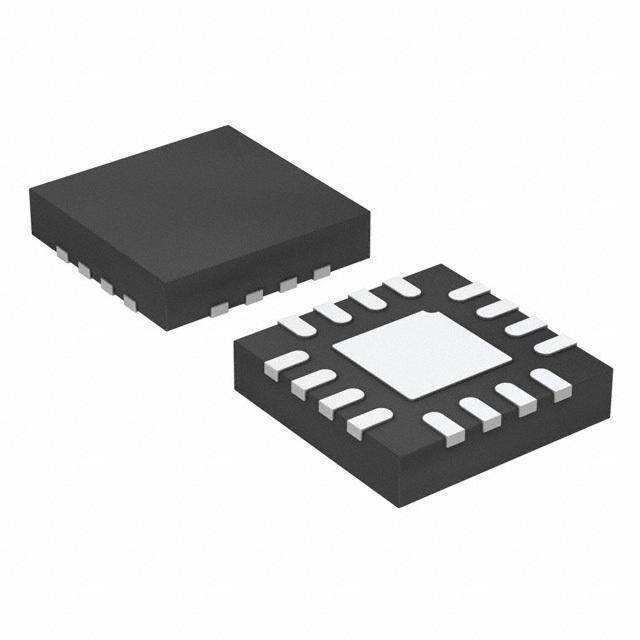

• Package: The TPS60252RTER is available in a compact QFN package, ideal for space-constrained applications.

Applications

The TPS60252RTER is a versatile LED driver that can be used in multiple applications, including:

• Backlighting for LCD displays in portable devices such as smartphones, tablets, and digital cameras.
• White LED driving for small-scale lighting solutions.
• General-purpose LED illumination.

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability. The TPS60252RTER is manufactured to meet high standards, ensuring stable performance and durability for the end-user. With its robust design and versatile functionality, this LED driver is an excellent choice for developers looking to create efficient lighting solutions in their next-generation portable devices.
