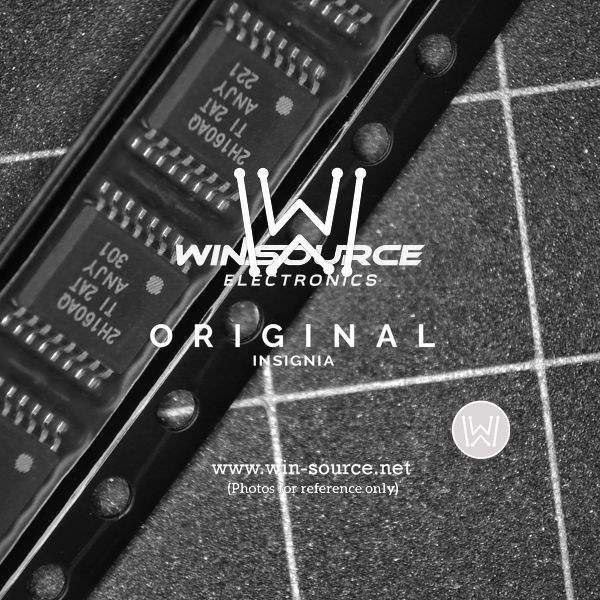

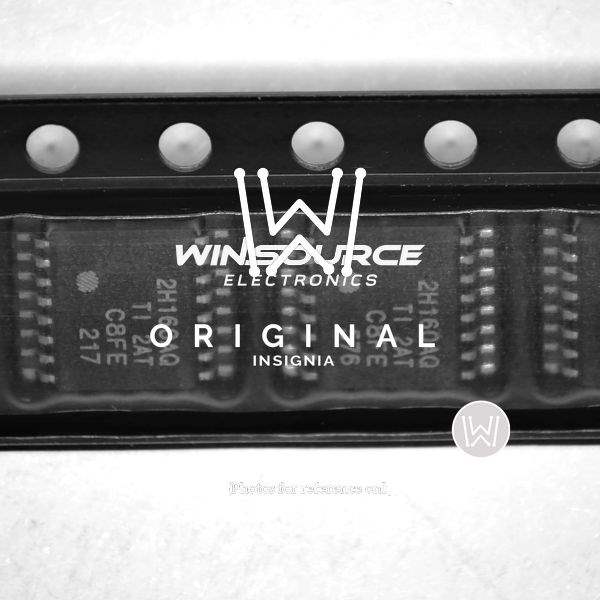

The TPS2H160AQPWPRQ1 is a state-of-the-art automotive smart high-side switch introduced by Texas Instruments, designed to handle power distribution and circuit protection in vehicular applications. This advanced switch is tailored to meet the stringent requirements of the automotive industry, offering both robustness and high performance.

Key Features

• High-Side Switch Configuration: The TPS2H160AQPWPRQ1 operates as a high-side switch, which allows for the safe and efficient control of power to various loads in automotive systems.
• Wide Operating Voltage Range: It supports a broad input voltage range, accommodating the fluctuations commonly found in automotive power systems.
• Integrated Protection Features: This device includes overcurrent, overvoltage, and overtemperature protection, ensuring the longevity and reliability of both the switch and the connected components.
• Diagnostic Capabilities: Built-in diagnostic functions enable the detection of faults and system monitoring, which are critical for maintaining the safety and functionality of automotive electronics.

Applications

The TPS2H160AQPWPRQ1 is ideally suited for a variety of automotive applications, including but not limited to:

• Power distribution modules
• Body control modules
• Intelligent lighting systems
• Advanced driver-assistance systems (ADAS)

Quality and Reliability

As with all Texas Instruments products, the TPS2H160AQPWPRQ1 is manufactured to the highest quality standards. It is AEC-Q100 qualified, ensuring that it meets the reliability requirements for automotive-grade components. Additionally, the device is provided in a compact PowerPAD MSOP package, which aids in thermal dissipation and saves space on the PCB.

Conclusion

With its robust design, comprehensive protection features, and diagnostic capabilities, the TPS2H160AQPWPRQ1 from Texas Instruments stands out as an essential component for modern automotive systems. Its ability to manage power efficiently and safely makes it an excellent choice for manufacturers looking to enhance the performance and reliability of their automotive electronics.
