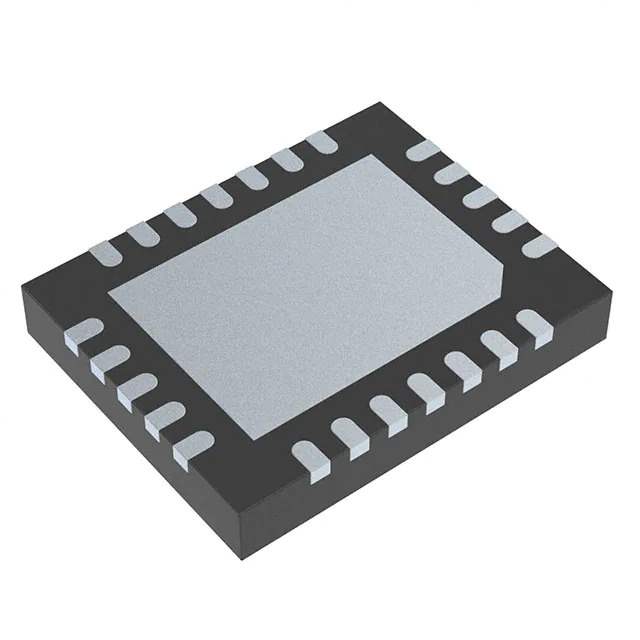

The TPS26601RHFR from Texas Instruments is a robust, feature-rich integrated electronic fuse (eFuse) designed to provide overvoltage, overcurrent, inrush current, and short-circuit protection for industrial and commercial systems. This device is part of the TPS2660x family that offers a wide range of current ratings and is optimized for 24V systems with a maximum operating voltage of up to 60V.

Key Features:

• Wide Operating Voltage Range: The TPS26601RHFR operates over a supply voltage range of 4.5V to 60V, making it suitable for a broad array of industrial applications.
• Adjustable Overcurrent Protection: Users can set the overcurrent protection threshold via an external resistor, allowing for precise control based on the needs of the application.
• Programmable Under-voltage Lockout (UVLO): The UVLO threshold can be adjusted to ensure the device operates only when the supply voltage is within an acceptable range.
• Overvoltage Protection: The device provides overvoltage protection to safeguard downstream components from voltage spikes.
• Inrush Current Control: The TPS26601RHFR effectively manages inrush current during startup to prevent system damage.
• Reverse Polarity Protection: This eFuse is equipped with reverse polarity protection to prevent damage from incorrect power supply connections.
• Thermal Shutdown: An internal thermal shutdown feature protects the device and the system from overheating.

Applications:

The TPS26601RHFR is ideal for various applications including but not limited to:

• Industrial automation
• PLC (Programmable Logic Controllers)
• Factory automation
• Power distribution systems
• Heavy machinery

With its robust protection features and flexible configuration options, the TPS26601RHFR is an excellent choice for designers looking to enhance system reliability and safety in demanding industrial environments.
