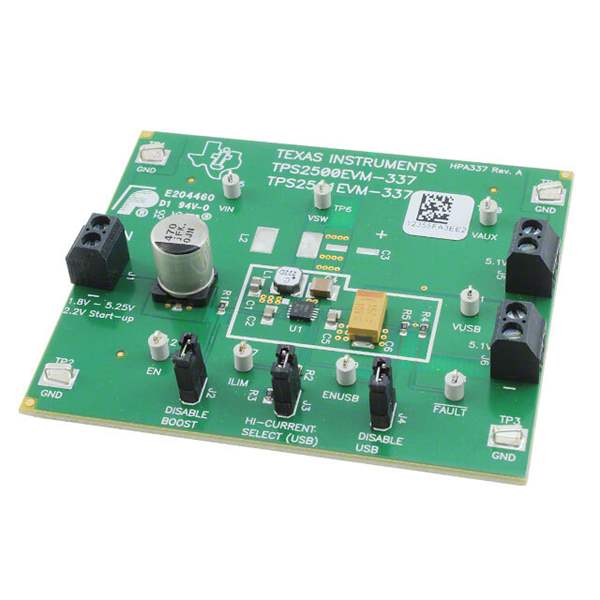

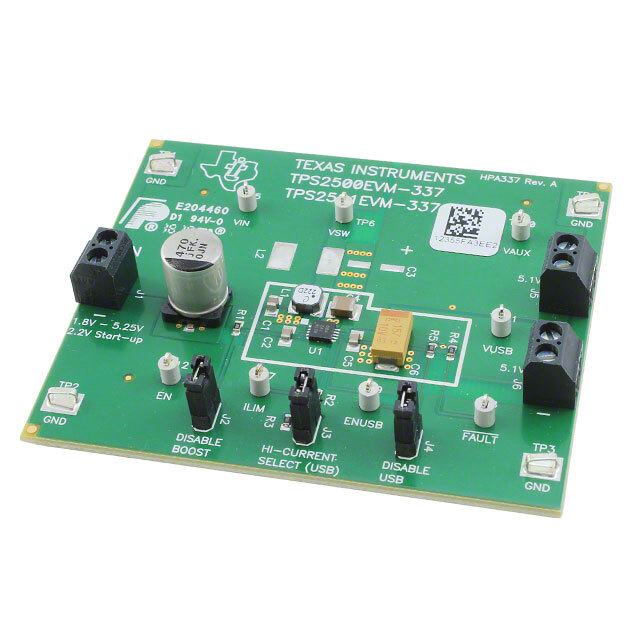

Introducing the TPS2501EVM-337 Evaluation Module from Texas Instruments

The TPS2501EVM-337 is a state-of-the-art evaluation module designed by Texas Instruments to facilitate the testing and performance analysis of the TPS2501 Dual USB Power Switch and Overcurrent Protection IC. This compact and versatile evaluation module is an essential tool for engineers and developers looking to integrate USB power management into their applications.

Key Features of the TPS2501EVM-337

• Robust USB Power Management: The TPS2501EVM-337 is designed to demonstrate the capabilities of the TPS2501 IC, which includes distribution of USB power and overcurrent protection for single or dual USB ports.
• Dual Channel Operation: With its dual-channel design, the EVM offers independent power switch control for two USB outputs, making it a versatile solution for a wide range of USB-powered devices.
• Adjustable Current Limiting: The evaluation module allows users to test the adjustable current-limit feature of the TPS2501, ensuring devices are protected against overcurrent conditions.
• Overcurrent and Thermal Protection: The module includes built-in overcurrent and thermal protection features, safeguarding the USB ports and connected devices from damage due to excessive current or overheating.
• Easy-to-Use Interface: The TPS2501EVM-337 is designed with user-friendliness in mind, featuring convenient test points and jumpers for straightforward evaluation and configuration.

Applications

The TPS2501EVM-337 is ideal for a variety of applications that require reliable USB power distribution and protection, such as:

• Portable electronics
• Consumer electronics
• USB hubs, docking stations, and peripherals
• Battery-powered devices

Technical Specifications

The EVM is equipped with the following technical attributes:

• Input voltage range: 2.5V to 6.5V
• Output current capability: Up to 1.5A per channel
• On-resistance: Typically 90mΩ
• Operating temperature range: -40°C to 85°C

Whether you're developing new USB-powered devices or upgrading existing ones, the TPS2501EVM-337 from Texas Instruments provides a comprehensive platform for testing and validating your USB power management solutions. With its robust features and ease of use, this evaluation module is an invaluable resource for ensuring your products meet the highest standards of performance and reliability.
