Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Reel - TR
Type Hot Swap Controller
Number of Channels 1
Internal Switch(s) Yes
Applications General
Features Auto Retry, Thermal Limit
Programmable Features Circuit Breaker, Current Limit, Fault Timeout, OVP, Slew Rate, UVLO
Operating Supply Voltage 2.5 V ~ 18 V
Current - Output (Maximum) 12A
Operating Temperature Range -40°C ~ 85°C
Operating Supply Current 1mA
Mounting SMD

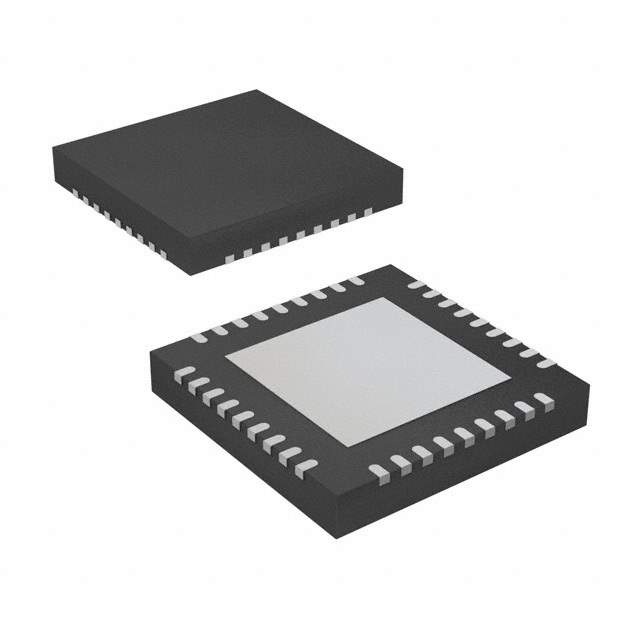

Package 36-VFQFN Exposed Pad
Manufacturer Package 36-VQFN (7x3.5)
Feature Pins EN, FLTB, IMON, OV, PGB, PROG, SET, TIMER
Win Source Part Number 1272275-TPS24751RUVT
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name TPS24751
Introduction Date October 23, 2013
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TPS24751RUVT CAD Model

Description

Overview of Texas Instruments TPS24751RUVT

The TPS24751RUVT is a sophisticated power management integrated circuit (IC) designed by Texas Instruments (TI) to provide an efficient and reliable solution for controlling and protecting power supplies in a variety of electronic applications. This IC is particularly suited for systems that require precise current limiting and a high level of protection for sensitive components.

Key Features

  • Adjustable Current Limit: The device allows users to set a precise current limit threshold to protect the system from overcurrent conditions. This feature is essential for preventing damage to the power supply and connected devices.
  • Fast Overcurrent Response: The TPS24751RUVT is designed to respond quickly to overcurrent events, ensuring that the system is protected without unnecessary delays.
  • Power Good (PG) Output: A 'power good' signal is provided to indicate when the output voltage is within a specified range, which is useful for power sequencing and system status monitoring.
  • Thermal Shutdown: In the event of excessive heat, the IC includes a thermal shutdown feature to prevent thermal damage, enhancing the overall reliability of the system.
  • Under Voltage Lockout (UVLO): The TPS24751RUVT prevents the system from operating under insufficient supply voltages, which could lead to unpredictable behavior or damage.

Applications

With its robust feature set, the TPS24751RUVT is ideal for a wide range of applications, including:

  • Server and Telecom Power Supplies
  • Industrial Power Systems
  • Power Distribution Systems
  • Networking Equipment
  • Storage Systems

Product Specifications

The TPS24751RUVT is packaged in a compact QFN (quad flat no-lead) package, which is suitable for space-constrained applications. It operates over a wide input voltage range and is designed to interface seamlessly with other components in a power supply design.

Conclusion

Overall, the Texas Instruments TPS24751RUVT represents a reliable and versatile solution for power management. Its combination of current limiting, fast response times, and additional safety features make it an essential component for designing a safe and efficient power supply in both commercial and industrial settings.
