Products specifications

Category Integrated Circuits (ICs) - Power Management (PMIC) - Hot Swap Controllers
Mfr Maxim Integrated
Package Strip
Product Status Active
Type Hot Swap Controller
Number of Channels 1
Internal Switch(s) Yes
Applications General Purpose
Features Auto Retry, Fault Timeout, Latched Fault
Programmable Features Circuit Breaker, Current Limit, Fault Timeout, OVP, Slew Rate, UVLO
Voltage - Supply 2.7V ~ 18V
Current - Output (Max) 15A
Temperature Range - Operating -40°C ~ 105°C
Current - Supply 5.7 mA
Mounting Type Surface Mount

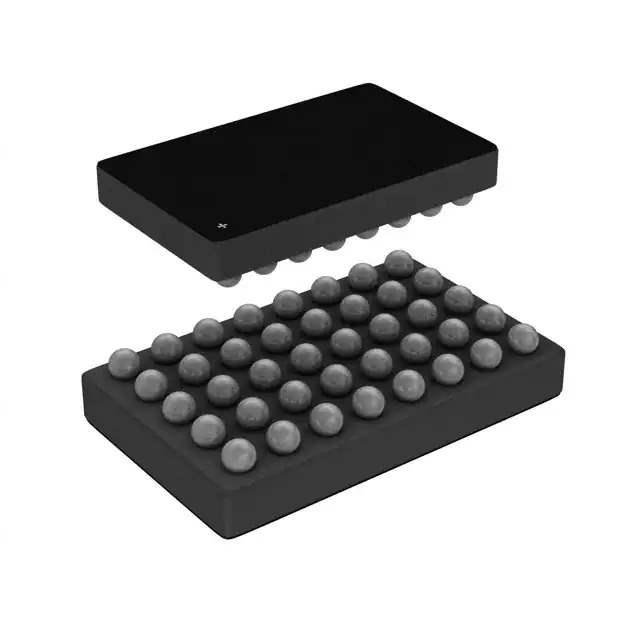

Package / Case 40-WFBGA, WLBGA
Supplier Device Package 40-WLP (2.57x4.03)
Base Product Number MAX15093
Standard Package 110 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 701581-MAX15093GWL+
Ultra Librarian 3D Model Ultra Librarian MAX15093GWL+ CAD Model

Description

Product Overview: MAX15093GWL+ from Maxim Integrated

The MAX15093GWL+ is a state-of-the-art integrated circuit from Maxim Integrated, designed to provide robust and efficient power management solutions for a wide range of applications. This compact, high-performance device is engineered to deliver exceptional functionality while maintaining a minimal footprint, making it an ideal choice for space-constrained environments.

Key Features

  • High Efficiency: The MAX15093GWL+ is optimized for high efficiency, reducing power loss and improving overall system performance.
  • Wide Input Voltage Range: With a wide input voltage range, this IC can accommodate various power sources, enhancing its versatility for different applications.
  • Thermal Management: The device includes advanced thermal management features that help to maintain optimal operating temperatures, ensuring reliability and longevity.
  • Protection Features: It is equipped with a suite of protection features, including overcurrent protection, overvoltage protection, and thermal shutdown, safeguarding the system against potential damage from abnormal conditions.

Applications

The MAX15093GWL+ is suitable for a broad array of applications, particularly where power efficiency and space-saving are critical. It is commonly used in:

  • Telecommunications
  • Networking Equipment
  • Data Centers
  • Portable Devices
  • Industrial Systems

Technical Specifications

The device boasts impressive technical specifications that ensure its performance meets the demands of modern electronic systems:

  • Package Type: The MAX15093GWL+ comes in a compact, leadless package that is suitable for automated assembly processes.
  • Integrated Functions: It integrates multiple functions into a single chip, reducing the need for additional components and simplifying the design process.
  • Quality and Reliability: Maxim Integrated is known for its commitment to quality, and the MAX15093GWL+ is no exception, with rigorous testing to ensure reliable operation under various conditions.

Conclusion

The MAX15093GWL+ from Maxim Integrated is a versatile, efficient, and reliable power management solution that meets the evolving needs of modern electronics. Its compact design, coupled with its high-performance features and robust protection mechanisms, make it an excellent choice for designers looking to optimize their power management systems.
