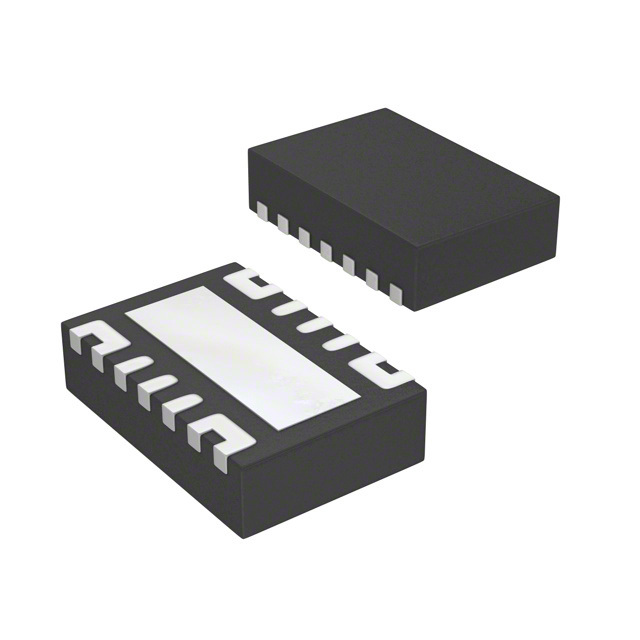

Product Overview: Texas Instruments TPS22976ADPUR

The TPS22976ADPUR is a high-performance, feature-rich integrated circuit from Texas Instruments, designed to cater to the needs of power management within electronic systems. This compact and efficient load switch provides power distribution and circuit protection with a wide range of applications, from portable devices to larger electronics requiring precise power control.

Key Features

• Input Voltage Range: The device operates over an input voltage range of 1.05 V to 5.5 V, making it versatile for various low-voltage applications.
• Ultra-Low On-Resistance: The TPS22976ADPUR features an ultra-low on-resistance (RON) of just 28 mΩ at 5 V, which minimizes power loss and improves efficiency.
• Current Handling: With the capability to handle up to 4 A of continuous current, this load switch is suitable for high-power applications.
• Quick Output Discharge: The integrated quick output discharge transistor ensures a rapid discharge of the output capacitance when the switch is turned off, preventing any unwanted power residue in the system.
• Adjustable Rise Time: An adjustable rise time feature allows for the reduction of inrush current, providing additional protection to sensitive components downstream.
• Small Package Size: Enclosed in a small 2.00 mm × 2.00 mm, 8-pin X2SON package, the TPS22976ADPUR saves valuable board space without compromising on performance.

Protection Features

The TPS22976ADPUR is not only efficient but also places a strong emphasis on protection. It includes over-temperature protection and an input voltage surge protection feature, which safeguards the device and the load from potential damage.

Applications

Due to its compact size and robust feature set, the TPS22976ADPUR is ideal for a wide range of applications, including but not limited to:

• Smartphones, Tablets, and Portable Electronics
• SSDs and Other Storage Devices
• Power Supplies and Point of Load Systems
• Networking and Telecommunications Equipment
• Industrial and Automotive Electronics

Overall, the TPS22976ADPUR from Texas Instruments is a highly reliable and efficient solution for modern power management challenges, offering a blend of performance, protection, and versatility that makes it an excellent choice for designers and engineers across various industries.
