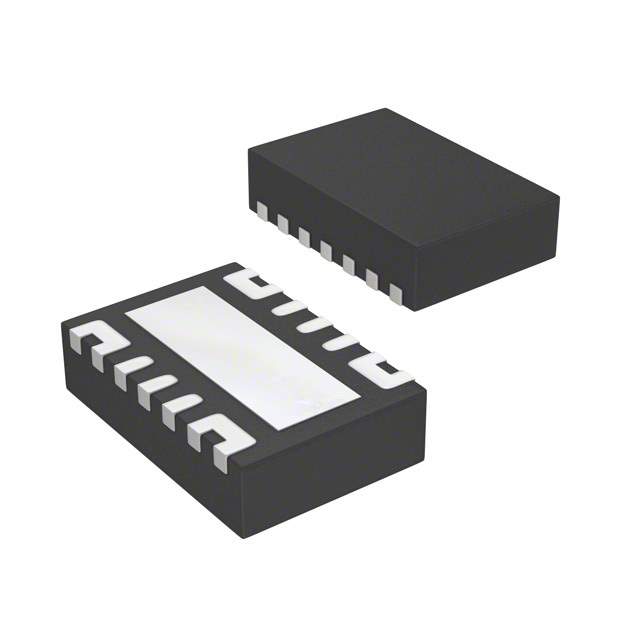

The TPS22968NDPUR is a high-performance, feature-rich integrated circuit from Texas Instruments, designed to manage power distribution in a variety of electronic systems. This compact, dual-channel load switch offers advanced control and protection features, making it an ideal solution for applications that require efficient power management with minimal power loss.

Key Features

• Input Voltage Range: The TPS22968NDPUR operates over an input voltage range of 1.62V to 5.5V, making it versatile for various low-voltage applications.
• Dual-Channel Load Switch: It incorporates two independently controlled load switches, allowing for the management of two separate power lines within a system.
• Ultra-Low On-Resistance: With an on-resistance (R_ON) as low as 8.7 mΩ at 5V, the device ensures minimal voltage drop and power loss across the switch.
• Quick Output Discharge: An integrated quick output discharge (QOD) feature provides rapid discharge of the output capacitors when the switch is turned off, which is crucial for power sequencing and system protection.
• Adjustable Rise Time: The device offers an adjustable rise time to mitigate inrush current, enhancing system stability and reducing electromagnetic interference (EMI).
• Under-Voltage Lockout (UVLO): The UVLO feature ensures that the switch remains off if the input voltage is below a certain threshold, protecting downstream components.
• Over-Temperature Protection: Built-in over-temperature protection safeguards the device and the system from thermal damage.

Applications

The TPS22968NDPUR is suitable for a wide range of applications, including but not limited to:

• Smartphones, Tablets, and Portable Electronics
• Power Management for Peripheral Ports
• SSDs and Other Memory Devices
• Industrial and Automotive Systems
• Enterprise Solutions, such as Servers and Network Equipment

Overall, the TPS22968NDPUR by Texas Instruments is a reliable and efficient solution for designers looking to optimize power distribution in their electronic designs. Its small footprint, combined with its powerful features, provides a flexible and robust power management solution.
