Product Overview: TPS22968QDMGTQ1 from Texas Instruments

The TPS22968QDMGTQ1 is a high-performance, feature-rich integrated circuit designed by Texas Instruments, specifically tailored for automotive and power management applications. This compact, low on-resistance load switch provides power distribution control with a wide input voltage range, making it a versatile solution for various electronic systems within modern vehicles.

Key Features

• Wide Input Voltage Range: The device operates efficiently within a broad voltage range, typically from 1.5V to 5.5V, accommodating various power supply requirements.
• Low On-Resistance: It offers a low on-resistance (RON) that minimizes power loss and improves efficiency, which is crucial for battery-operated systems.
• Quick Output Discharge: The TPS22968QDMGTQ1 includes an integrated quick output discharge transistor, which ensures the output is discharged when the switch is turned off, thereby protecting downstream components.
• Adjustable Rise Time: With an adjustable rise time feature, this device helps to mitigate inrush current, further enhancing system stability and reliability.
• Under-Voltage Lockout (UVLO): The UVLO function protects the device and the load by preventing operation when the input voltage falls below a certain threshold.
• Over-Temperature Protection: Built-in over-temperature protection safeguards the device from thermal overload, ensuring safe operation under varying conditions.

Applications

The TPS22968QDMGTQ1 is ideally suited for automotive applications, including infotainment systems, GPS, radios, and various control modules. Its robust design also makes it appropriate for power management tasks in industrial and consumer electronics where efficiency and reliability are paramount.

Quality and Reliability

As part of Texas Instruments' commitment to quality, the TPS22968QDMGTQ1 meets stringent automotive industry standards, including AEC-Q100 qualification. The device is manufactured using a high-reliability process that ensures performance under the harsh conditions typically found in automotive environments.

Packaging and Availability

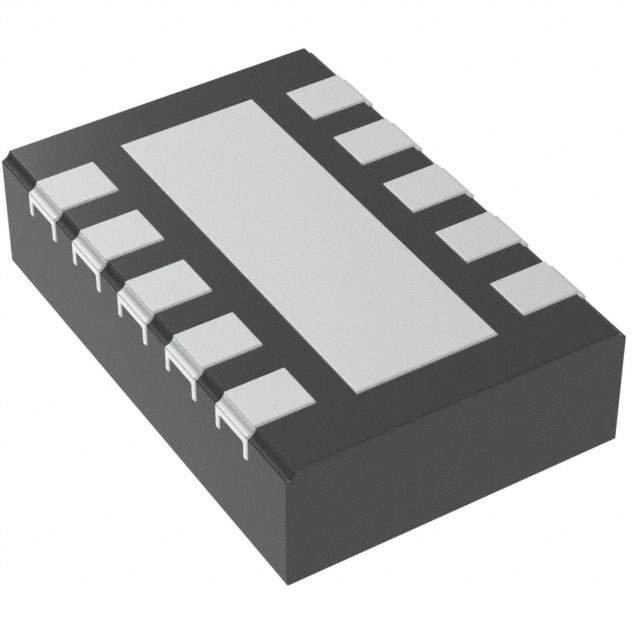

This load switch is available in a compact VSON package, which is highly valued for space-constrained applications. Its small footprint allows for efficient use of board space without compromising on functionality or thermal performance. For pricing, availability, and additional technical resources, customers can visit the Texas Instruments website or contact their local sales representative.
