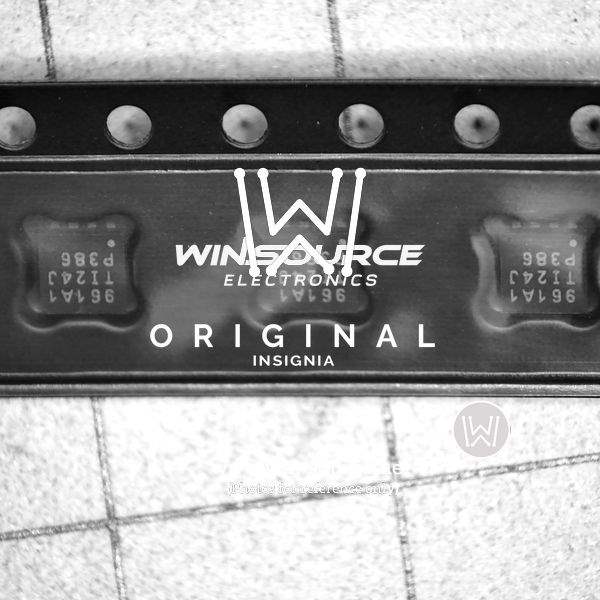

Overview of TPS22961DNYT

The TPS22961DNYT is a high-performance, feature-rich load switch developed by Texas Instruments, designed to efficiently manage power distribution in electronic systems. This compact and reliable component is an essential building block for modern electronic devices, ensuring that power is supplied to various subsystems in a controlled and efficient manner.

Key Features

• Ultra-Low On-Resistance: The TPS22961DNYT boasts an ultra-low on-resistance (RON) of typically 8 mΩ at 4.5V, which minimizes power loss and improves overall system efficiency.
• Input Voltage Range: The device operates over a wide input voltage range from 1.05V to 5.5V, making it suitable for a variety of applications, including those powered by Li-Ion batteries or 5V power rails.
• Maximum Continuous Current: It can handle a maximum continuous current of up to 6A, ensuring robust power supply capabilities for high-demand components.
• Quick Output Discharge: The integrated quick output discharge (QOD) feature allows for the rapid discharge of the output capacitance when the switch is turned off, which is critical for power-down and energy-saving modes.
• Controlled Slew Rate: The TPS22961DNYT includes a controlled slew rate to reduce inrush current, which helps in minimizing system voltage drops and protecting downstream circuits.
• Low Quiescent Current: With a low quiescent current, this load switch is optimized for battery-powered applications, where power conservation is crucial.
• Compact Package: Housed in a space-saving 6-pin DNY (1.45 mm x 1 mm) package, the TPS22961DNYT is ideal for portable and space-constrained applications.

Applications

The versatile nature of the TPS22961DNYT allows it to be used across a broad range of applications, including:

• Smartphones, tablets, and other portable electronics
• Power management for subsystems in computers and servers
• Energy-efficient and power-sensitive applications like IoT devices
• Peripheral power supplies in consumer electronics

Overall, the TPS22961DNYT from Texas Instruments is an efficient solution for power distribution, offering a blend of performance, power savings, and design flexibility, making it an excellent choice for designers looking to optimize their power management strategy.
