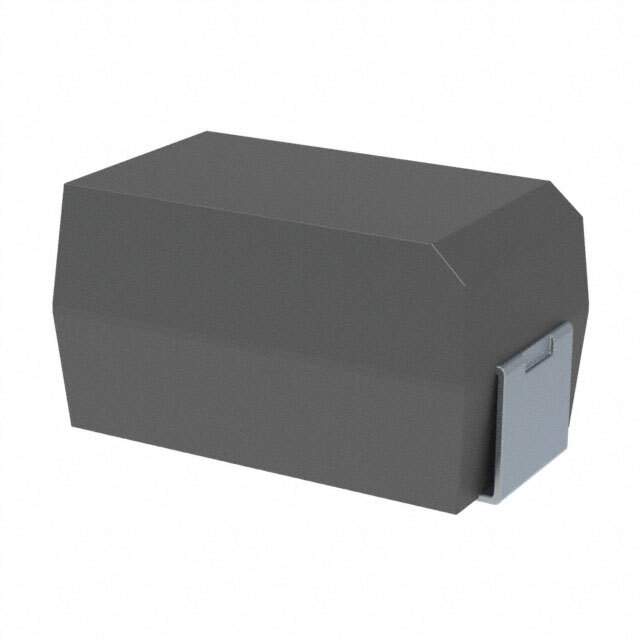

T520X157M016ATE040 Real Image
Same model may have multiple batches, images only for reference.

T520X157M016ATE040

Part No T520X157M016ATE040
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description Tantalum, Polymer Tantalum, T520, 150 uF, 20%, 16 V, 7343, SMD, Polymer, Molded, Low ESR, Non-Combustible, 40 mOhms, Height Max = 4.3mm
Datasheet
T520X157M016ATE040 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series KO-CAP T520
Packaging Reel - TR
Capacitance 150μF
Tolerance ±20%
Voltage Rating DC 16V
Type Molded
ESR (Equivalent Series Resistance) 40 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 2917 (7343 Metric)
Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.169" (4.30mm)
Manufacturer Size Code X
Features General
Manufacturer Homepage www.kemet.com
Win Source Part Number 749720-T520X157M016ATE040
Popularity Medium
Supply and Demand Status Limited
Family Name T520
Introduction Date September 27, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian T520X157M016ATE040 CAD Model

Description

The 749720-T520X157M016ATE040 is a KO-CAP T520 molded capacitor manufactured by Kemet.

  • Capacitance: 150μF
  • Voltage Rating: 16V
  • ESR: 40 mOhm
  • Operating Temperature Range: -55°C to 105°C
  • EOL Date: 2028 (Estimated)
  • Supply and Demand Status: Limited
