The TPD4E05U06QDQARQ1 is a state-of-the-art ESD (Electrostatic Discharge) protection device designed and manufactured by Texas Instruments. This robust component is engineered to safeguard high-speed interfaces against ESD events and other transient voltage occurrences that could potentially damage sensitive electronics.

Key Features:

• High-Speed Data Line Protection: The TPD4E05U06QDQARQ1 is capable of protecting up to four data lines with ultra-low capacitance, making it ideal for high-speed data applications without compromising signal integrity.
• IEC Compatibility: This device is compatible with IEC 61000-4-2 (ESD) standards, ensuring a high level of protection for your electronics during ESD events.
• Low Clamping Voltage: It features a low clamping voltage, which is essential for protecting sensitive circuits by limiting the voltage to a safe level during transient conditions.

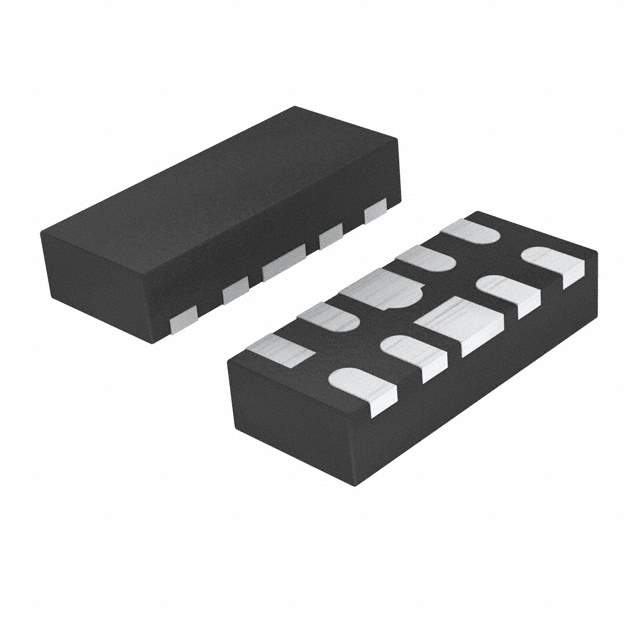

• Small Package Size: The TPD4E05U06QDQARQ1 comes in a small DQA (X2SON) package, making it suitable for space-constrained applications without sacrificing performance.
• Wide Operating Range: This device operates over a broad temperature range, ensuring reliable protection across various environmental conditions.

Applications:

The TPD4E05U06QDQARQ1 is versatile and can be used in a multitude of applications where ESD protection is critical. Common applications include:

• USB interfaces, including USB 2.0 and USB 3.0
• High-speed data lines such as HDMI, DisplayPort, and Thunderbolt
• Consumer electronics that require robust ESD protection
• Portable electronic devices where space and protection are paramount

Conclusion:

With its combination of low capacitance, high-level ESD protection, and small form factor, the TPD4E05U06QDQARQ1 from Texas Instruments is an excellent choice for designers looking to enhance the durability and longevity of their high-speed electronic devices. Its ability to seamlessly integrate into various circuits while providing reliable protection makes it a go-to component for ESD-sensitive applications.
