TPD3F303DPVR

Part No TPD3F303DPVR
Manufacturer Texas Instruments
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) ESD SMD / RC (Pi) EMI Filter 2nd Order Low Pass 3 Channel R = 47Ohms, 100Ohms, C = 20pF 8-UFDFN Exposed Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr Texas Instruments
Series TPD
Package Tape & Reel
Product Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 3
Center / Cutoff Frequency 294MHz, 308MHz (Cutoff)
Resistance - Channel (Ohms) 47, 100
Values R = 47Ohms, 100Ohms, C = 20pF
ESD Protection Yes
Temperature Range - Operating -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Mounting Type Surface Mount

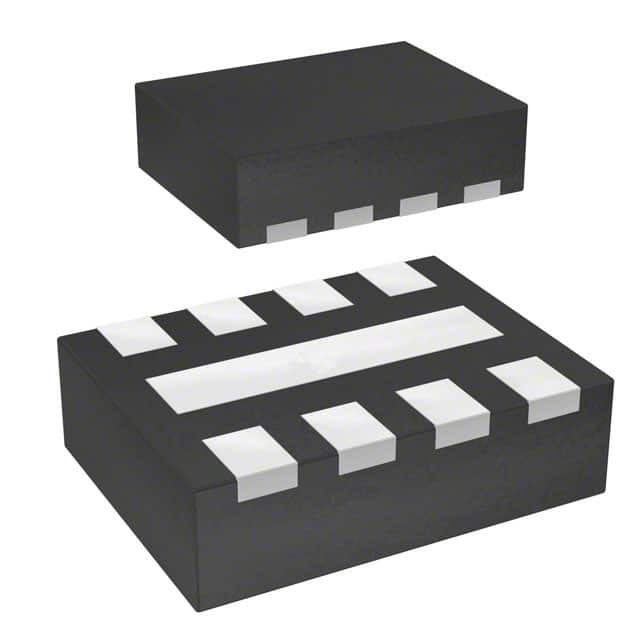

Package / Case 8-UFDFN Exposed Pad
Size / Dimension 0.083" L x 0.063" W (2.10mm x 1.60mm)
Height 0.026" (0.65mm)
Base Product Number TPD3F303
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 845193-TPD3F303DPVR
Ultra Librarian 3D Model Ultra Librarian TPD3F303DPVR CAD Model

Description

TPD3F303DPVR from Texas Instruments is an EMI/RFI filter device used to help protect and condition signal lines in compact electronic designs where noise suppression and interface robustness matter. In practice, parts in this category are commonly considered for consumer electronics, portable devices, embedded systems, and I/O protection paths where designers need cleaner signal behavior and improved resilience in space-constrained layouts. Texas Instruments is widely specified for interface and protection components, making this part relevant for engineers seeking established sourcing channels and integration support. The current lifecycle status for TPD3F303DPVR is information not available from the provided input, so design teams should confirm product status directly with Texas Instruments or authorized distribution sources before locking it into new programs. RoHS compliance information is also not available from the provided input. Engineers, buyers, and compliance teams should verify the latest datasheet, material declaration, and manufacturer compliance statements before procurement or release to production.
