Overview of TMS320VC5416ZGU160

The TMS320VC5416ZGU160 is a high-performance digital signal processor (DSP) from Texas Instruments (TI), designed to meet the rigorous demands of signal processing applications. This processor is part of TI's TMS320C54x DSP family, which is renowned for its efficient processing capabilities and low power consumption. The TMS320VC5416ZGU160 is ideal for a variety of applications, including telecommunications, audio processing, industrial control systems, and more.

Key Features

• High-Speed DSP Core: The core of the TMS320VC5416ZGU160 operates at a frequency of up to 160 MHz, providing robust computational power for complex algorithms and signal processing tasks.
• Memory: It features an integrated memory system that includes a large 256K x 16-bit on-chip RAM, which allows for efficient data management and high-speed access.
• Peripheral Integration: This DSP is equipped with a variety of integrated peripherals, such as a multichannel buffered serial port (McBSP), a host port interface (HPI), and a direct memory access (DMA) controller, which enhance its connectivity and data transfer capabilities.
• Low Power Consumption: Designed with power efficiency in mind, the TMS320VC5416ZGU160 offers several power-saving modes, making it suitable for battery-powered and portable applications.
• Advanced Instruction Set: The processor utilizes an advanced instruction set optimized for digital signal processing, which includes specialized instructions for accelerated FFT, FIR, and IIR processing.

Applications

The versatility of the TMS320VC5416ZGU160 allows it to be used across a wide range of applications. In the telecommunications sector, it can be employed for voice and data processing, including echo cancellation and compression. In audio processing, it is capable of handling tasks such as sound synthesis, effects processing, and audio mixing. The processor is also suitable for industrial control systems, where precise and rapid signal processing is required for real-time control and monitoring.

Package and Quality

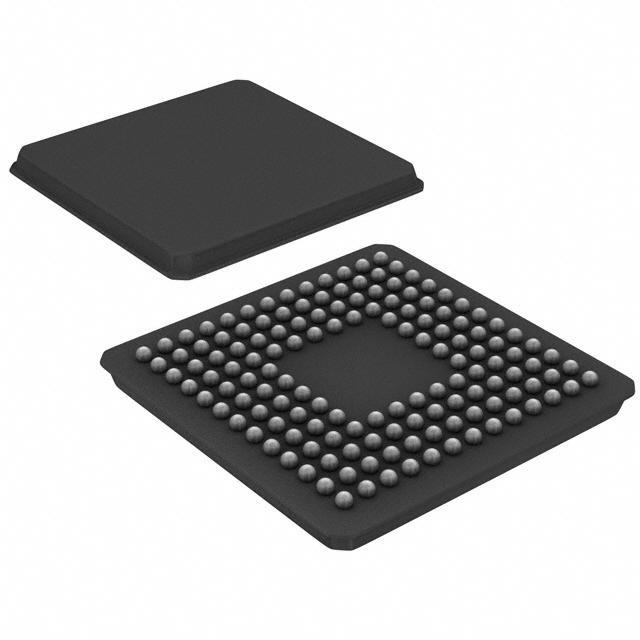

The TMS320VC5416ZGU160 comes in a compact 144-BGA (Ball Grid Array) package, which allows for a small form factor and ease of integration into various system designs. Texas Instruments is committed to delivering high-quality products, and this DSP is no exception, with rigorous testing and quality assurance processes in place to ensure reliability and performance.
