Same model may have multiple batches, images only for reference.

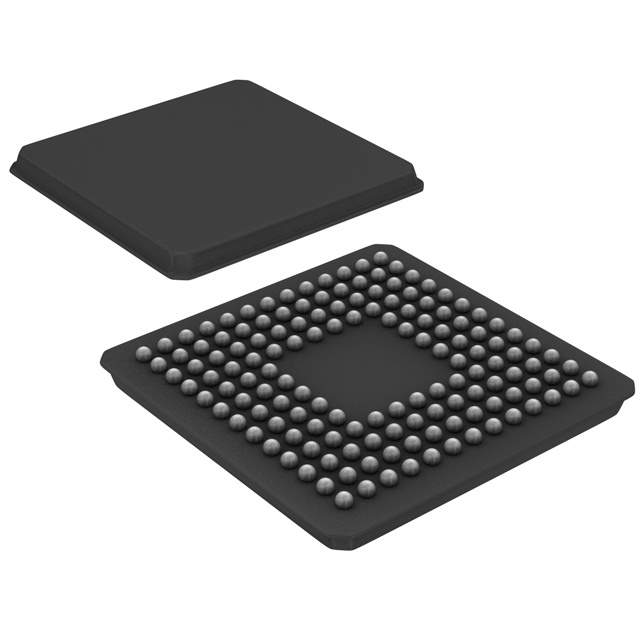

TMS320LC548GGU-80 Real Image
Same model may have multiple batches, images only for reference.

TMS320LC548GGU-80

Part No TMS320LC548GGU-80
Manufacturer Texas Instruments
Catalog Embedded - DSP (Digital Signal Processors)
Description IC DSP 144-BGA / DSP Fixed-Point 16bit 80MHz 80MIPS 144-Pin BGA MICROSTAR Tray
Datasheet
TMS320LC548GGU-80 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Series TMS320C54x
Packaging Tray
Type Fixed Point
Interface BSP, HPI, TDM
Clock Rate 80MHz
Non-Volatile Memory ROM (4 kB)
On-Chip RAM 64kB
Voltage - I/O 3.30V
Voltage - Core 3.30V
Operating Temperature Range -40°C ~ 100°C (TC)
Mounting SMD
Package 144-LFBGA
Manufacturer Package 144-BGA MICROSTAR (12x12)
Win Source Part Number 797607-TMS320LC548GGU-80
Popularity Medium
Supply and Demand Status Limited
Family Name TMS320LC548
Introduction Date February 01, 1996
ECCN 3A991.a.2
Country of Origin Philippines
Halogen Free Not Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TMS320LC548GGU-80 CAD Model

Description

The Texas Instruments TMS320LC548GGU-80 is a Texas Instruments TMS320C54x series microcontroller.

  • Type: fixed point
  • Clock Rate: 80MHz
  • Package Type: 144-LFBGA
  • Voltage - I/O: 3.30V
  • Interface Options: BSP, HPI, and TDM
  • Non-Volatile Memory: 4kB
  • On-Chip RAM: 64kB
  • Voltage - Core: 3.30V
  • Supply and Demand Status: limited
