The Texas Instruments TMS320F28377SZWTT microcontroller is a highly integrated, high-performance solution for demanding control applications. This device is part of the TMS320F2837x series, which is known for its advanced digital signal processing (DSP) capabilities and robust architecture designed for precision control systems.
Key Features:
- Dual-Core C2000™ Architecture: The TMS320F28377SZWTT features a dual-core configuration including a C28x CPU and a real-time control accelerator (CLA), which provides parallel processing capabilities for complex algorithms and control-oriented tasks.
- Enhanced Processing Power: With a CPU frequency of up to 200 MHz, this microcontroller is capable of executing high-speed computations and supporting fast control loop times, making it ideal for real-time applications.
- Integrated Analog Subsystems: It includes multiple 16-bit analog-to-digital converters (ADCs) with simultaneous sampling, enabling precise data acquisition and monitoring. The device also has comparators and a 12-bit digital-to-analog converter (DAC) for comprehensive analog interfacing.
- Advanced Peripherals: A wide range of peripherals such as PWM outputs, capture inputs, serial ports (UART, SPI, I2C, and CAN), and USB connectivity extend the functionality of the microcontroller, allowing for versatile system design.
- Embedded Memory: The microcontroller comes with 1MB of flash memory and 204KB of RAM, facilitating efficient code storage and execution without the need for external memory components.
- Error Correction: Built-in error correction code (ECC) on both flash and RAM ensures high reliability and data integrity, crucial for safety-critical applications.
- Robust Design: The TMS320F28377SZWTT is designed to operate in harsh industrial environments, with an extended temperature range and enhanced protection features.
Applications:
This microcontroller is suited for a variety of industrial applications, including motor control, renewable energy systems, power supplies, and advanced sensing. Its computational power and integrated peripherals make it an excellent choice for designers looking to implement sophisticated control algorithms and achieve high system efficiency.
Package and Availability:

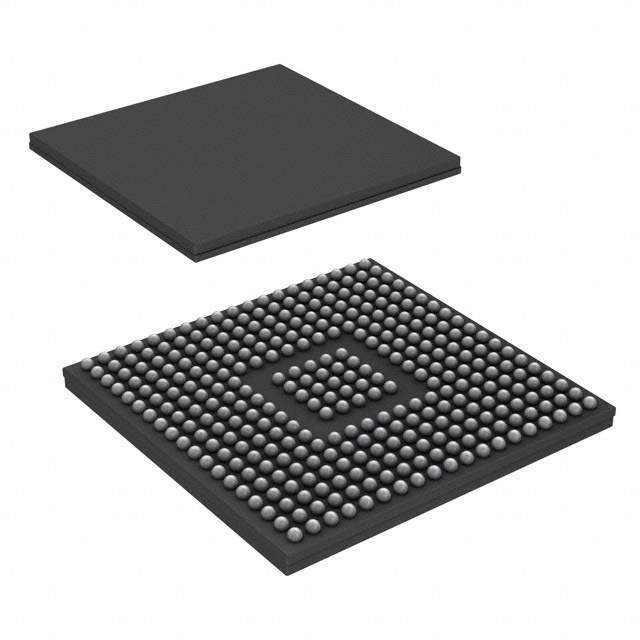

The TMS320F28377SZWTT comes in a 337-pin BGA (ball grid array) package, ensuring a compact footprint for space-constrained applications. It is widely available through Texas Instruments and authorized distributors, providing reliable supply and support for your design needs.
