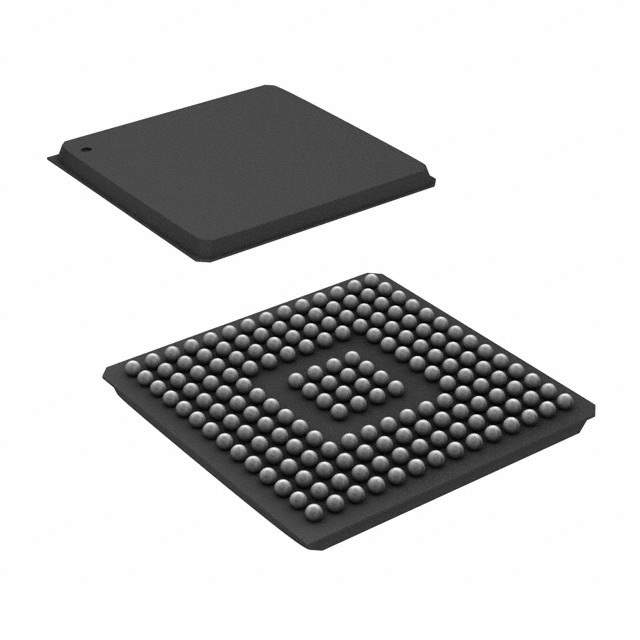

Product Overview: TMS320F28234ZJZA

The TMS320F28234ZJZA is a high-performance digital signal processor (DSP) from Texas Instruments, designed for demanding applications that require efficient, real-time processing capabilities. This DSP is part of the TMS320C2000™ series, which is renowned for its integrated control-oriented peripherals, making it an ideal choice for industrial, automotive, and consumer electronics applications.

Key Features:

• High-Performance Processing: Equipped with a 32-bit fixed-point DSP core, the TMS320F28234ZJZA operates at a frequency of up to 150MHz, delivering up to 300 million instructions per second (MIPS). This processing power enables the device to handle complex algorithms and control tasks with ease.
• Advanced Control Peripherals: The device includes a rich set of peripherals designed to facilitate motor control, power conversion, and other real-time control applications. These include high-resolution PWM outputs, capture inputs, QEP interfaces, and ADC inputs with a 12-bit resolution.
• Robust Memory Architecture: With 256KB of flash memory and 34KB of RAM, the TMS320F28234ZJZA provides ample storage for code and data. The flash memory supports fast programming and secure data storage, while the RAM allows for efficient data processing and manipulation.
• Communication Interfaces: The device offers multiple communication interfaces, including CAN, SPI, I2C, and UART, ensuring easy integration with other components and systems. These interfaces enable the DSP to communicate with sensors, actuators, and other microcontrollers.
• Low-Power Modes: To support energy-efficient operations, the TMS320F28234ZJZA features multiple low-power modes. These modes allow the device to reduce power consumption when full processing capabilities are not required, extending the life of battery-powered applications.
• Reliability and Safety: Designed with industrial and automotive applications in mind, the TMS320F28234ZJZA meets stringent quality and reliability standards. It also includes features such as error correction code (ECC) and a watchdog timer to enhance system safety and reliability.

Applications:

The TMS320F28234ZJZA is versatile enough to be used in a wide range of applications, including motor control, power management, renewable energy systems, automotive control units, and advanced sensing systems. Its robust feature set and high-performance capabilities make it a go-to choice for engineers looking to develop sophisticated control systems.
