The TMS320F2812GBBA is a powerful digital signal processor (DSP) from Texas Instruments, designed to meet the high-performance requirements of modern control applications. This DSP is part of the TMS320F281x series, which is renowned for its high-speed processing capabilities and integrated peripherals tailored for industrial control systems.

Key Features

• High-Performance DSP: With a 32-bit fixed-point CPU, this DSP is capable of reaching speeds up to 150 MHz, providing a performance of 150 million instructions per second (MIPS).
• Memory: It comes equipped with 128KB of Flash memory and 18KB of RAM, ensuring ample space for complex algorithms and real-time data processing.
• Integrated Peripherals: The device features a rich set of peripherals, including a 12-bit analog-to-digital converter (ADC), CAN (controller area network) module, PWM (pulse-width modulation) outputs, and capture inputs, making it ideal for motor control and other industrial applications.
• Communication Interfaces: Multiple serial communication interfaces such as SCI (UART), SPI, and I2C are available for easy connectivity and data exchange with other devices in the system.
• Robust Design: The TMS320F2812GBBA is designed to operate in harsh industrial environments, with a wide temperature range and built-in protections against voltage variations and other electrical disturbances.

Applications

This DSP is specifically designed for control-oriented applications, such as:

• Motor Control (AC Induction, Brushless DC, Stepper, and Servo Motors)
• Digital Power Conversion (DC-DC Converters, Inverters)
• Intelligent Sensors and Actuators
• Industrial Automation and Robotics

Package and Availability

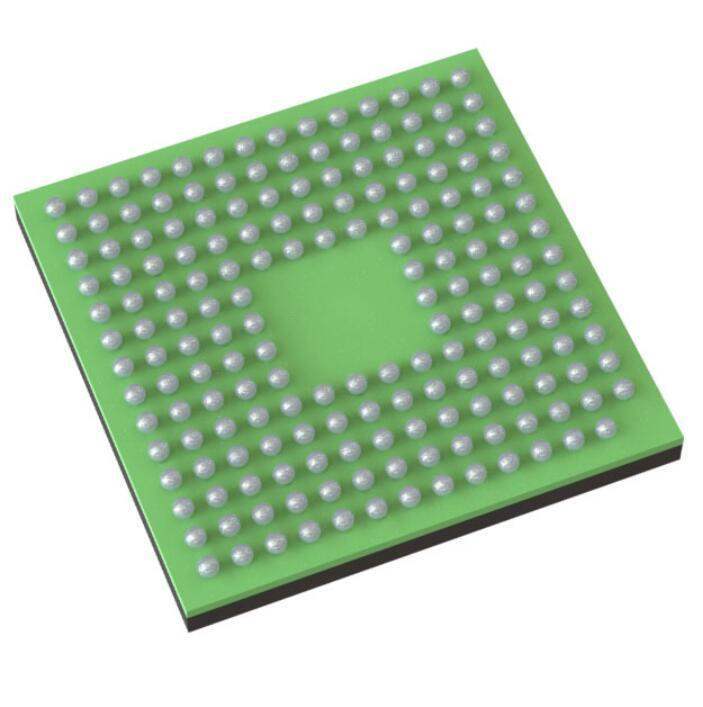

The TMS320F2812GBBA comes in a 176-pin BGA (Ball Grid Array) package, providing a compact footprint for space-constrained applications. Texas Instruments supports this product with a comprehensive suite of development tools, including software libraries and a development kit, to facilitate rapid design and deployment.

With its combination of high-speed performance, integrated features, and robust design, the TMS320F2812GBBA is a versatile DSP solution that can significantly enhance the capabilities of a wide range of control systems.
