Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Sensor Type Digital, Local
Sensing Temperature - Local -40°C to 125°C
Output Type I²C/SMBus
Supply Voltage - Operating 1.4 V to 3.6 V
Resolution 11 b
Features One-Shot, Output Switch, Shutdown Mode
Accuracy - Highest (Lowest) ±2°C (±3°C)
Testing Conditions -25°C to 85°C (-40°C to 125°C)
Temperature Range - Operating -55°C to 150°C
Mounting SMD (SMT)

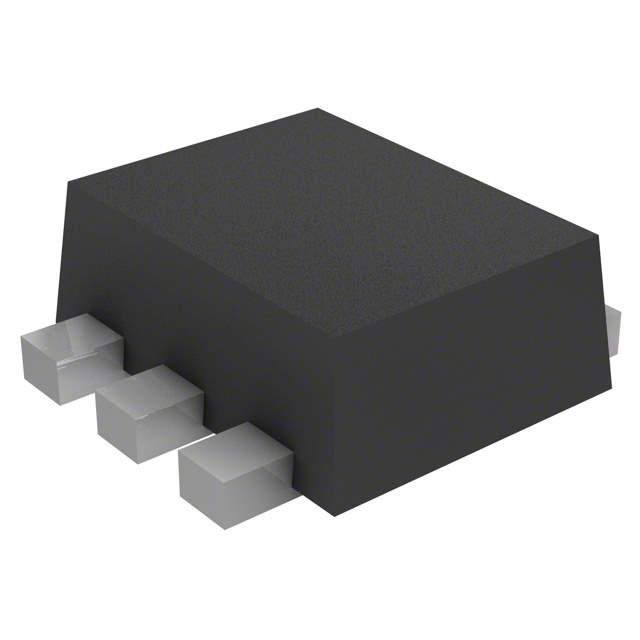

Case / Package SOT-563
Win Source Part Number 1110015-TMP102AIDRLRG4
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TMP102AIDRLRG4 CAD Model

Description

The TMP102AIDRLRG4 is a highly precise digital temperature sensor from Texas Instruments, designed for optimal performance in a variety of applications. This sensor offers an impressive range of features that make it an ideal choice for projects requiring reliable temperature readings with minimal power consumption.

Key Features

  • Accuracy: The TMP102AIDRLRG4 boasts a high level of accuracy, with a typical accuracy of ±0.5°C from -25°C to 85°C and ±1°C from -40°C to 125°C. This makes it suitable for applications that demand precise temperature monitoring.
  • Digital Output: This sensor communicates via a two-wire, I2C-compatible serial interface, which simplifies integration with microcontrollers and allows for multiple devices to be connected to the same bus.
  • Low Power: Designed with power-sensitive applications in mind, the TMP102AIDRLRG4 has a very low quiescent current. This extends the battery life of portable applications and is ideal for power-restricted systems.
  • Small Size: Housed in a tiny SOT-563 package, the TMP102AIDRLRG4 is perfect for space-constrained applications, without compromising on performance.
  • Wide Temperature Range: With an operational range from -40°C to +125°C, the sensor is versatile enough to be used in environments with extreme temperature conditions.
  • Programmable Resolution: The resolution of the TMP102AIDRLRG4 is programmable from 9 to 12 bits, allowing designers to make a trade-off between resolution and conversion time as required by their application.

Applications

The TMP102AIDRLRG4 is suitable for a wide array of applications, including but not limited to:

  • Consumer Electronics
  • Mobile Phones
  • Computing Systems
  • Environmental Monitoring
  • Industrial Control
  • Battery Management Systems
  • Medical Equipment

In conclusion, the TMP102AIDRLRG4 from Texas Instruments is a compact, accurate, and power-efficient digital temperature sensor that can be easily integrated into a multitude of applications requiring precise temperature readings. Its robust feature set and versatility make it an excellent choice for designers and engineers seeking a reliable temperature sensing solution.
