The TMDXCNCD28069 is a highly integrated, high-performance solution from Texas Instruments, specifically designed to meet the rigorous demands of today’s advanced control applications. This product is part of the C2000™ Piccolo™ family, a series of microcontrollers that bring real-time control to the cost-sensitive market with a perfect blend of performance, features, and power efficiency.

Key Features

• Processing Core: At the heart of the TMDXCNCD28069 is a 32-bit TMS320C28x DSP core running at up to 90 MHz, providing the computational horsepower necessary for complex algorithms and control techniques.
• Memory: Equipped with 256 KB of on-chip flash memory and 100 KB of SRAM, this microcontroller offers ample space for application code and data storage, ensuring smooth and efficient operation.
• Integrated Peripherals: A suite of integrated peripherals enhances the functionality of the TMDXCNCD28069. These include enhanced PWM outputs, 12-bit ADCs, capture inputs, quadrature encoder inputs, and serial communication interfaces like UART, SPI, and I2C.

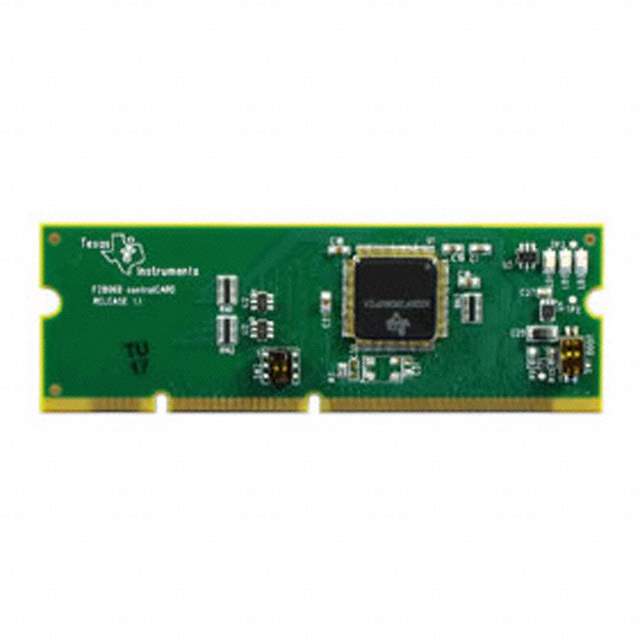

• ControlCARD: The TMDXCNCD28069 is a ControlCARD module, which provides a compact, interchangeable card design for easy prototyping and hardware scalability.
• Software Support: Full support is provided by Texas Instruments’ Code Composer Studio™ integrated development environment (IDE) and controlSUITE™ software, which includes libraries, examples, and documentation to accelerate development.
• JTAG Interface: For debugging and programming, the module includes a JTAG interface compatible with standard development tools.

Applications

The TMDXCNCD28069 is well-suited for a variety of industrial and consumer applications, including:

• Motor control (AC Induction, BLDC, PMSM)
• Renewable energy systems (solar inverters, wind turbines)
• Power supplies and converters
• LED lighting
• Automotive control systems

With its robust set of features and capabilities, the TMDXCNCD28069 from Texas Instruments is an excellent choice for engineers looking to implement advanced control systems with a focus on performance and cost-effectiveness.
