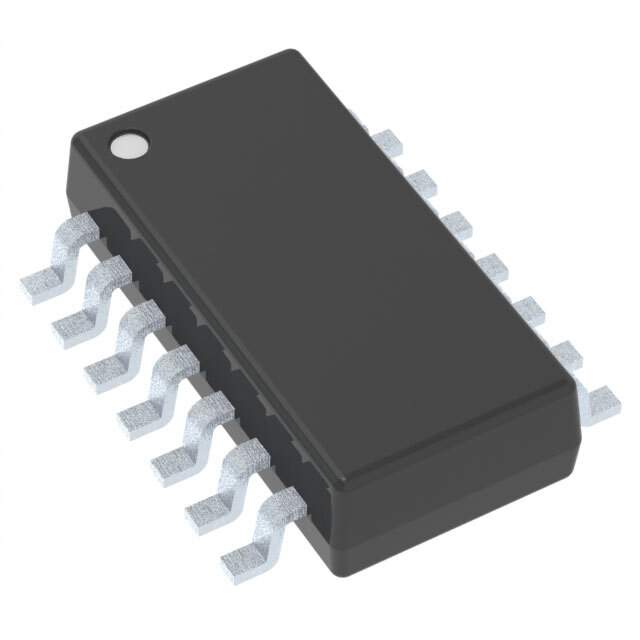

The TLV9004QDYYRQ1 from Texas Instruments is a high-performance, automotive-grade operational amplifier that is designed to meet the stringent requirements of the automotive industry. This quad operational amplifier comes in a compact 14-pin TSSOP package and is characterized for operation from -40°C to 125°C, making it suitable for a wide range of automotive applications.

Key Features

• Low Power Consumption: The device is optimized for low-voltage operation, consuming only 900 nA of quiescent current per channel, which is ideal for battery-powered applications where power efficiency is critical.
• Wide Supply Voltage Range: With a wide supply voltage range of 1.8 V to 5.5 V, the TLV9004QDYYRQ1 offers design flexibility for various voltage rails in automotive systems.
• High Gain Bandwidth Product: The operational amplifier provides a gain bandwidth product of 1 MHz, which is suitable for a variety of signal processing tasks.
• Robust ESD Protection: It features integrated ESD protection circuits, which ensure the device can withstand electrostatic discharges without damage, enhancing system reliability.
• Automotive Qualified: As a Q1 device, it meets the requirements of the AEC-Q100 standard for automotive quality, ensuring high reliability and performance under harsh conditions.

Applications

The TLV9004QDYYRQ1 is versatile and can be used in a range of automotive applications, including:

• Sensor signal conditioning
• Low-side current sensing
• Active filtering
• Error amplification in closed-loop systems
• Battery management systems

With its low power consumption, robust protection features, and high reliability, the TLV9004QDYYRQ1 is an excellent choice for designers looking to enhance the performance and efficiency of their automotive electronic systems.

For detailed specifications and application support, visit the Texas Instruments website or contact your local Texas Instruments sales representative.
