General Description

The TLV9001IDBVR from Texas Instruments is a high-performance, single operational amplifier (op-amp) designed for cost-sensitive applications that require low-power consumption and space-saving packaging. This op-amp is part of the TLV900x family, which is known for its robust design and versatility in various electronic circuits.

Key Features

• Low Power Consumption: The device boasts an ultra-low-power operation, making it ideal for battery-powered and portable applications where energy efficiency is crucial.
• Wide Supply Range: It operates over a wide supply range of 1.8 V to 5.5 V, accommodating a broad spectrum of power sources and allowing for flexibility in circuit design.
• High Gain Bandwidth: With a gain bandwidth of 1 MHz, the TLV9001IDBVR is capable of handling a wide range of frequencies, suitable for audio processing, filtering, and signal conditioning tasks.
• Rail-to-Rail Output: The rail-to-rail output stage ensures maximum dynamic range, which is particularly beneficial in low-voltage applications.
• Low Input Bias Current: It features a low input bias current, reducing errors in applications with high source impedances.

Applications

The TLV9001IDBVR is versatile and can be used in a variety of applications, including sensor signal conditioning, active filtering, medical instrumentation, battery-powered devices, and portable consumer electronics. Its small size and low-power attributes make it particularly well-suited for compact and mobile applications where space and power are at a premium.

Packaging and Quality

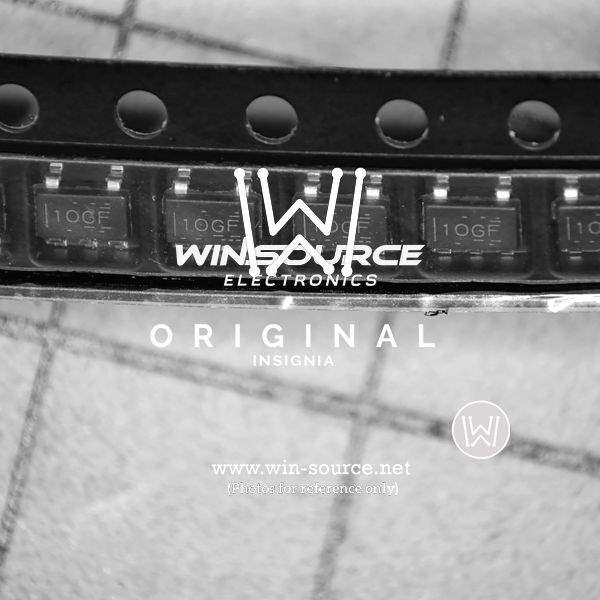

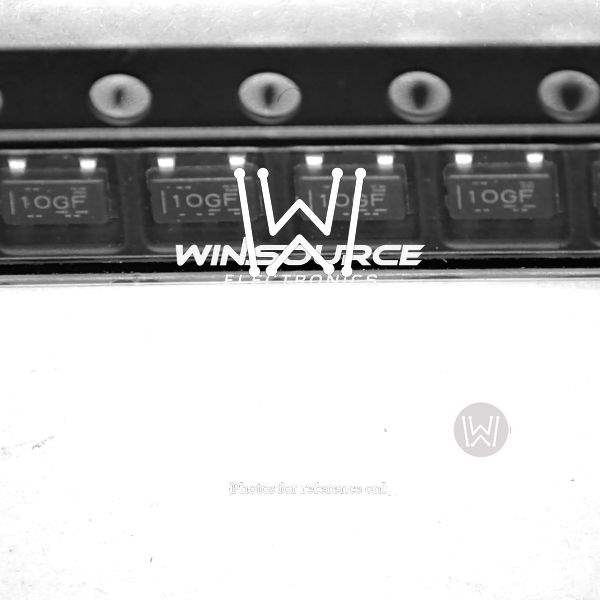

This op-amp is offered in a compact SOT-23-5 package, which is designed to meet the demands of space-constrained applications. The device is characterized for operation from -40°C to 125°C, ensuring reliability across a wide range of environmental conditions. Texas Instruments' commitment to quality ensures that the TLV9001IDBVR meets the stringent requirements of industrial and commercial applications.
