Product Overview: TLV2432AQDRG4Q1 from Texas Instruments

The TLV2432AQDRG4Q1 is a high-quality operational amplifier (op-amp) developed by Texas Instruments, tailored for automotive and industrial applications that demand robust performance under stringent conditions. This op-amp is part of the TLV243x family, known for its precision, low-voltage operation, and rail-to-rail input/output capabilities.

Key Features

• Low-Voltage Operation: The TLV2432AQDRG4Q1 is designed to operate at a supply voltage range of 2.7V to 16V, making it versatile for both low and standard voltage applications.
• Rail-to-Rail Input/Output: This feature allows the op-amp to handle input signals that range from the power supply rails to the ground and output signals that swing from rail to rail, maximizing the dynamic range.
• High Output Drive: The device can deliver a high current to drive capacitive loads effectively, which is crucial in many automotive and industrial applications.
• Extended Temperature Range: With an operational temperature range from -40°C to +125°C, the TLV2432AQDRG4Q1 ensures reliable performance in harsh environments.
• Robust ESD Protection: It includes protection against electrostatic discharge, enhancing the durability of the component in environments where ESD events are likely.

Applications

The TLV2432AQDRG4Q1 is well-suited for a variety of applications, particularly in the automotive sector, where high reliability and performance are non-negotiable. It is commonly used in:

• Powertrain systems
• Automotive sensors
• Battery management systems
• Control modules
• Industrial control systems

Quality and Reliability

Texas Instruments is committed to delivering high-quality products that meet the rigorous demands of automotive and industrial applications. The TLV2432AQDRG4Q1 is no exception, as it is manufactured to meet these standards, ensuring high reliability and consistent performance. The device is also provided in a small-outline package, making it suitable for space-constrained applications.

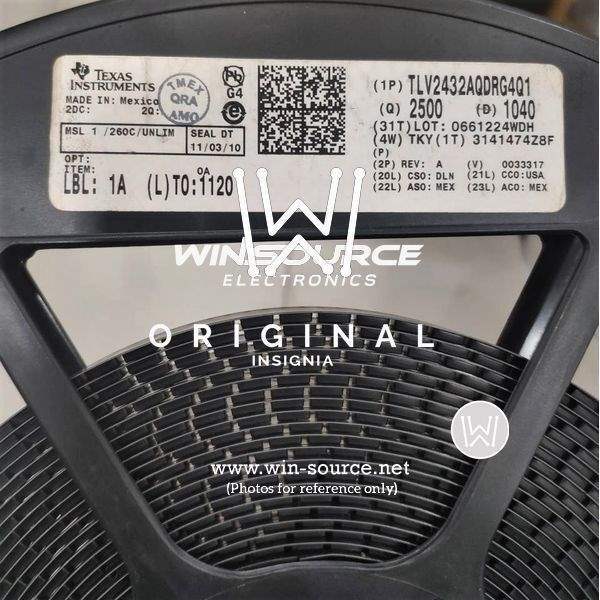

Part Number: TLV2432AQDRG4Q1
Manufacturer: Texas Instruments

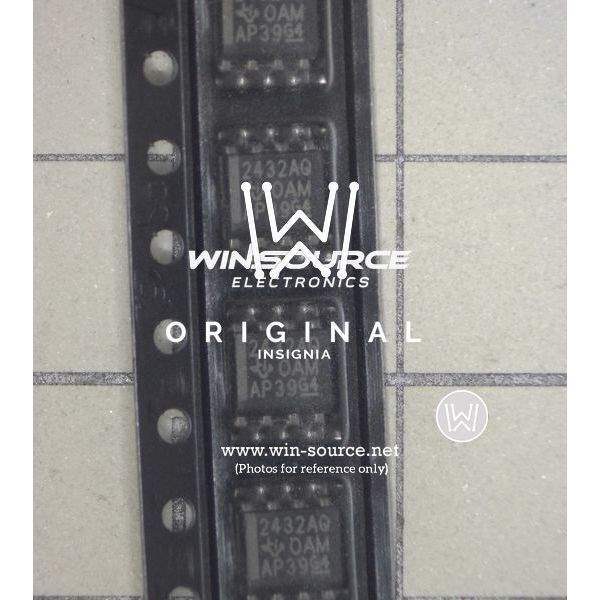

Package: SOIC-8 (Small Outline Integrated Circuit)
