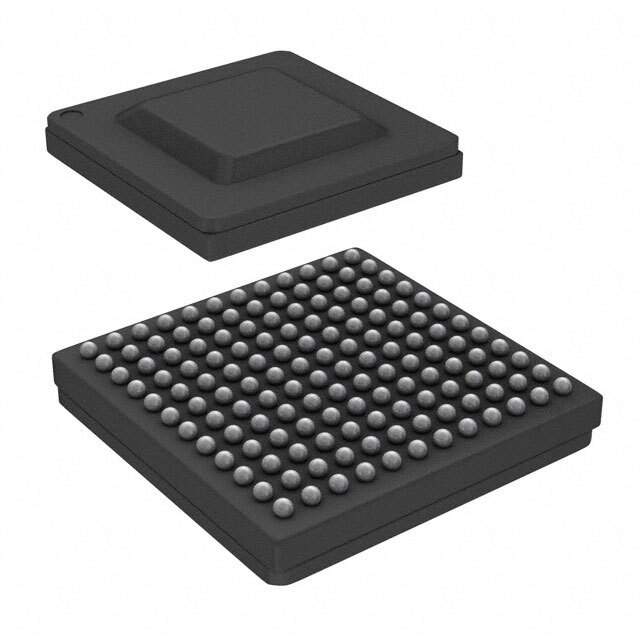

Product Overview: TLK10022 from Texas Instruments

The TLK10022 from Texas Instruments is a highly versatile and powerful dual-lane multi-rate serializer/deserializer (SerDes) transceiver module designed to meet the needs of modern high-speed data communication systems. This advanced integrated circuit is capable of operating with a wide range of data rates, from 250 Mbps to 12.5 Gbps per lane, offering flexibility for various applications such as backplane, cable, and chip-to-chip interfaces.

Key Features

• Multi-Rate Flexibility: Each lane can independently operate at speeds ranging from 250 Mbps to 12.5 Gbps, making it suitable for a variety of protocols and data rate requirements.
• Dual-Lane Operation: The TLK10022 incorporates two lanes that can be used in parallel for increased throughput or in a redundant configuration for enhanced reliability.
• Low Power Consumption: Designed with power efficiency in mind, the TLK10022 minimizes power consumption, which is critical for dense electronic systems and helps to reduce overall system costs.
• Programmable Equalization and De-Emphasis: To optimize performance over various physical media, the device features programmable equalization and de-emphasis levels.
• Jitter Performance: The TLK10022 boasts excellent jitter performance, ensuring signal integrity and reliable data transmission over long distances and through challenging transmission environments.

Applications

The TLK10022 is particularly well-suited for a range of applications, including:

• High-speed backplane interconnects for networking and telecommunication equipment.
• Data center infrastructure, supporting high-bandwidth server and storage connections.
• Wireless base station backhaul, aiding in the rapid transmission of data between network nodes.
• Industrial control systems requiring robust and high-speed data exchange.

Technical Specifications

With its dual-lane architecture, the TLK10022 provides a maximum aggregate data rate of 25 Gbps. It supports a variety of industry-standard interfaces and protocols, ensuring compatibility with a wide range of existing systems and future-proofing for evolving technology standards.

For designers and engineers looking for a reliable and adaptable SerDes solution, the TLK10022 from Texas Instruments offers a compelling combination of performance, power efficiency, and multi-rate support, making it an excellent choice for high-speed communication applications.
