Overview of Texas Instruments TL750L05CKC

The Texas Instruments TL750L05CKC is a highly reliable, low-dropout voltage regulator designed to deliver a fixed output of 5V. This component is an excellent choice for applications requiring a stable voltage source with a low dropout voltage and low quiescent current. The device is part of the TL750 series, which is well-known for its robust performance and is commonly used in a range of electronic devices, including portable equipment, microprocessor-based systems, and industrial controls.

Key Features

• Fixed Output Voltage: The TL750L05CKC provides a stable 5V output, which is essential for consistent operation in electronic circuits.
• Low Dropout Voltage: Designed for efficiency, the regulator has a low dropout voltage, ensuring minimal loss of power even when the input voltage is close to the output voltage.
• Low Quiescent Current: It features a low quiescent current, making it suitable for battery-powered applications where power conservation is crucial.
• Thermal Protection: The device includes built-in thermal protection to prevent damage from overheating, enhancing its reliability and lifespan.
• Overcurrent Protection: Overcurrent protection is integrated into the TL750L05CKC to safeguard the device and the load from excessive currents.
• Wide Operating Temperature Range: This voltage regulator operates effectively across a broad temperature range, accommodating various environmental conditions.

Applications

The TL750L05CKC voltage regulator is versatile and can be used in multiple applications. Its reliability and efficiency make it suitable for:

• Portable consumer electronics
• Microprocessor power supplies
• Industrial controls and automation systems
• Automotive electronics
• Telecommunication equipment

Product Specifications

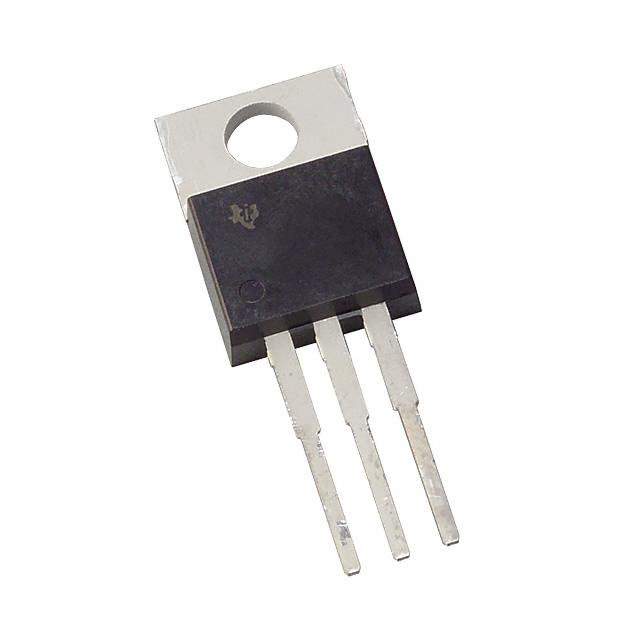

With a TO-220 package, the TL750L05CKC is designed for easy integration into a wide range of circuit boards. The device's compact size and pin configuration allow for straightforward implementation into existing designs without the need for significant modifications.

In summary, the Texas Instruments TL750L05CKC voltage regulator offers a combination of performance, protection features, and versatility, making it a top choice for designers and engineers looking for a reliable power management solution.
