Products specifications

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of Channels 4, QUART
FIFO's 16 Byte
Data Rate (Max) 1Mbps
Supply Voltage - Operating 3 V to 5.25 V
With Auto Flow Control Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting SMD (SMT)
Case / Package 68-PLCC (24.23x24.23)
Win Source Part Number 032342-TL16C554AFNR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name TL16C554A
Introduction Date July 26, 2006
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian TL16C554AFNR CAD Model

Description

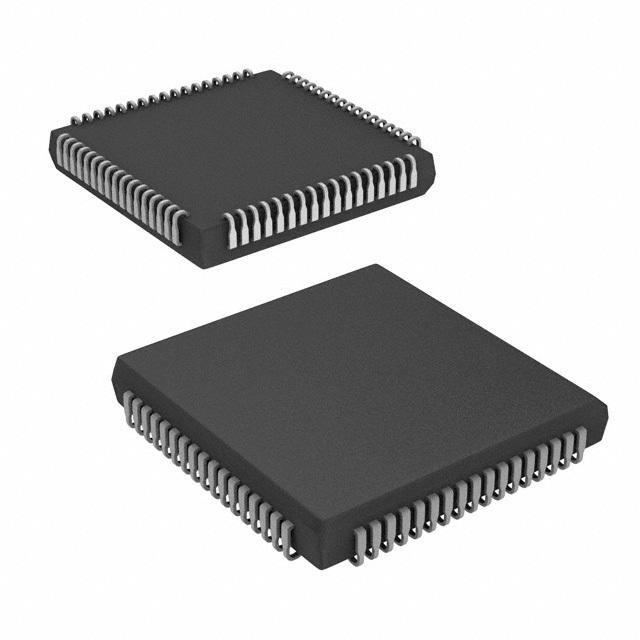

TL16C554AFNR - Texas Instruments

The TL16C554AFNR is a robust, high-performance integrated circuit from Texas Instruments, designed to provide a flexible interface solution for communication applications. This versatile component is a quad UART (Universal Asynchronous Receiver/Transmitter) with integrated features that simplify design and enhance system capabilities.

Key Features:

  • Quad UART Channels: The device incorporates four independent UART channels, each capable of handling serial communication protocols effectively. This makes it an ideal choice for multi-port serial applications.
  • Programmable Baud Rate: Each UART channel supports a programmable baud rate generator, allowing a wide range of data transmission speeds to suit various requirements.
  • FIFO Buffers: With 16-byte FIFOs for each transmit and receive buffer, the TL16C554AFNR reduces CPU overhead, especially in high-speed serial data applications.
  • Modem Control Functions: The device offers comprehensive modem control capabilities, which are essential for establishing and maintaining communications over modem links.
  • Flexible Character Lengths: It supports 5-, 6-, 7-, or 8-bit character lengths, providing flexibility in data format and compatibility with a range of communication standards.
  • Power Management: Advanced power management features are included to minimize power consumption during idle or inactive periods, making it suitable for power-sensitive applications.
  • Industry-Standard Footprint: The TL16C554AFNR comes in a 64-pin LQFP (Low-Profile Quad Flat Package), ensuring easy integration into existing designs and compatibility with standard PCB layouts.

Applications:

The TL16C554AFNR is used in a wide array of applications where reliable serial communication is a necessity. Some common applications include:

  • Industrial control systems
  • Point of sale (POS) terminals
  • Network servers and routers
  • Automotive diagnostics and telematics
  • Telecommunications equipment

In conclusion, the TL16C554AFNR from Texas Instruments is a highly integrated and efficient solution for adding serial communication capabilities to a variety of electronic systems. Its rich feature set, combined with Texas Instruments' reputation for quality and reliability, make it an excellent choice for designers and engineers looking to implement multiple UART channels in their products.
