Same model may have multiple batches, images only for reference.

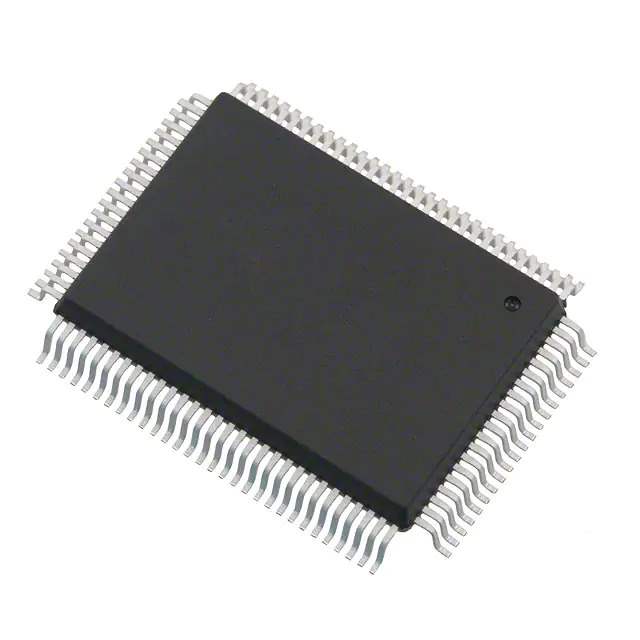

XR16V698IQ100-F Real Image
Same model may have multiple batches, images only for reference.

XR16V698IQ100-F

Part No XR16V698IQ100-F
Manufacturer MaxLinear Inc
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART FIFO 32B OCTAL 100QFP / UART IC 8 Channel RS485 32 Byte 100-QFP (14x20)
Datasheet
XR16V698IQ100-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Mfr MaxLinear Inc
Package Tray
Product Status Active
Features Internal Oscillator, Timer/Counter
Number of Channels 8
FIFO's 32 Byte
Protocol RS485
Data Rate (Max) 15Mbps
Voltage - Supply 2.25V ~ 3.6V
With Auto Flow Control Yes
With IrDA Encoder/Decoder Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting Type Surface Mount
Package / Case 100-BQFP
Supplier Device Package 100-QFP (14x20)
Base Product Number XR16V698
Standard Package 66 pcs
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 904059-XR16V698IQ100-F
Ultra Librarian 3D Model Ultra Librarian XR16V698IQ100-F CAD Model

Description

The XR16V698IQ100-F is an integrated circuit (IC) belonging to the UARTs (Universal Asynchronous Receiver Transmitter) interface category.

  • Features: Internal oscillator and a timer/counter
  • Package: Tray
  • Standard Package Quantity: 66 pieces
  • Protocol: RS485
  • Channels: 8
  • Maximum Data Rate: 15Mbps
  • FIFO: 32-byte
  • Features: Auto flow control, IrDA encoding/decoding, false start bit detection, and modem control
  • Voltage Supply Range: 2.25V to 3.6V
  • Mounting Type: Surface-mounted
  • Package: 100-BQFP
  • Manufacturer: MaxLinear Inc
  • Status: Active
