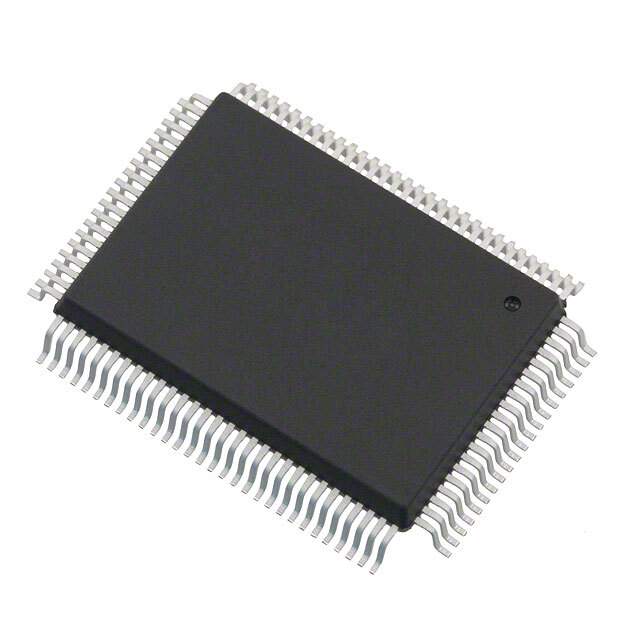

XR16C854IQ-F Real Image
Same model may have multiple batches, images only for reference.

XR16C854IQ-F

Part No XR16C854IQ-F
Manufacturer Exar Corporation
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART FIFO 128B QUAD 100QFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer MaxLinear, Inc.
Packaging Tray
Features Internal Oscillator, Timer/Counter
Number of Channels 4, QUART
FIFO's 128 Byte
Protocol RS232, RS485
Data Rate (Maximum) 2Mbps
Supply Voltage (V) 2.97V ~ 5.5V
With Auto Flow Control Yes
With IrDA Encoder/Decoder Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting Style SMD
Manufacturer Package 100-BQFP
Supplier Device Package 100-QFP (14x20)
Manufacturer Pack Quantity 66
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813247-XR16C854IQ-F
Ultra Librarian 3D Model Ultra Librarian XR16C854IQ-F CAD Model

Description

The XR16C854IQ-F is a 4-channel QUART protocol IC from MaxLinear, Inc..

  • Data Rate Maximum: 2Mbps
  • Package: 100-QFP (14x20)
  • FIFO's: 128 byte
  • Supply Voltage: 2.97V to 5.5V
  • Manufacturer Pack Quantity: 66
  • MSL Level: 3 (168 hours)
