Overview of Texas Instruments TL032CDG4

The Texas Instruments TL032CDG4 is a high-precision operational amplifier (op-amp) that offers a perfect blend of low power consumption and high accuracy, making it an ideal choice for a wide range of applications. This device is part of the TL032 series, which is renowned for its excellent performance in terms of input offset voltage, input bias current, and slew rate.

Key Features

• Low Power Consumption: The TL032CDG4 is designed for battery-powered and energy-efficient applications, consuming minimal power without compromising on performance.
• High Input Impedance: With a JFET input stage, the op-amp features a high input impedance, ensuring minimal loading on the signal source and making it suitable for high-impedance sensor amplification.
• Low Input Offset Voltage: The precision of the TL032CDG4 is highlighted by its low input offset voltage, which enhances the accuracy of signal amplification and processing.
• Wide Supply Range: It operates over a wide supply voltage range, accommodating various power supply requirements and providing design flexibility.
• Output Short-Circuit Protection: The device includes output short-circuit protection, ensuring reliability and robustness in the face of adverse conditions.

Applications

The TL032CDG4 is versatile and can be used in numerous applications, including:

• Active filters
• Signal conditioning
• Data acquisition systems
• Analog-to-digital converters
• Battery-powered instrumentation
• Medical devices

Quality and Reliability

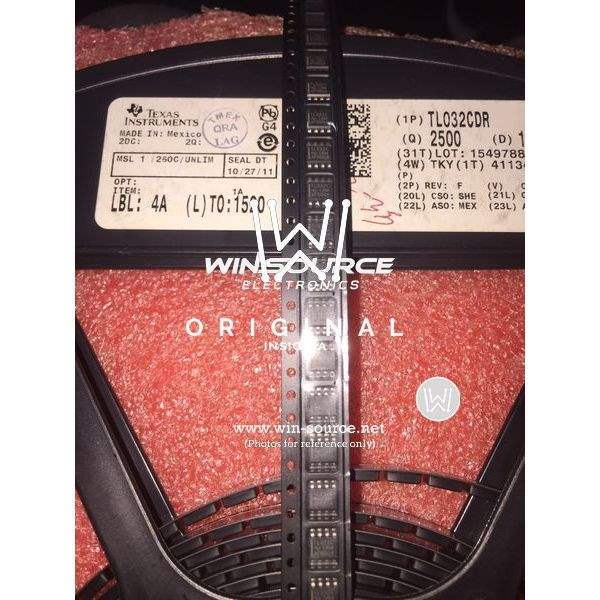

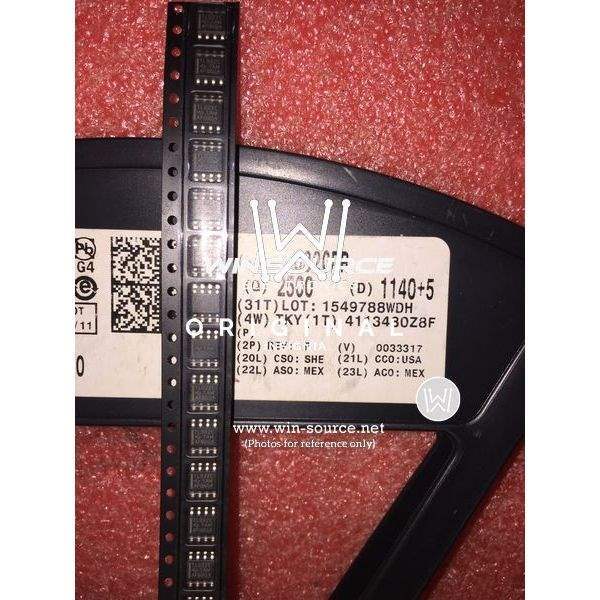

As with all Texas Instruments products, the TL032CDG4 is manufactured to high standards, ensuring that it meets the rigorous demands of industrial and commercial use. The device is available in a SOIC-8 package, providing a compact footprint for space-constrained applications.

In summary, the TL032CDG4 from Texas Instruments is a reliable and efficient solution for designers seeking an op-amp with low power consumption, high accuracy, and excellent thermal performance. Whether for consumer electronics, industrial control systems, or precision instrumentation, the TL032CDG4 stands out as a top choice for your operational amplifier needs.
