Product Overview: TCAN1042VDRBTQ1 from Texas Instruments

The TCAN1042VDRBTQ1 is a high-performance automotive-grade Controller Area Network (CAN) transceiver from Texas Instruments, designed to facilitate reliable communication in automotive applications. This robust device meets the physical layer requirements of the ISO 11898-2:2016 high-speed CAN specification, ensuring compatibility with data rates up to 1 Mbps.

Key Features

• Protection Features: The TCAN1042VDRBTQ1 is equipped with advanced protection features, including thermal shutdown, over-current protection, and transmission failure protection. These features enhance the reliability of the communication network under harsh automotive conditions.
• Bus Fault Protection: It can withstand bus fault events up to ±58V, safeguarding the device against transients and faults on the CAN bus lines.
• Low Power Mode: An integrated low-power mode significantly reduces current consumption when the network is idle or in standby, making it ideal for energy-conscious systems.
• Wide Operating Temperature Range: The device operates effectively over a broad temperature range from -40°C to +125°C, suitable for the demanding thermal environments found in automotive applications.

Applications

The TCAN1042VDRBTQ1 is designed primarily for use in automotive electronics, including powertrain, body control modules, and advanced driver assistance systems (ADAS). However, its robust design also makes it suitable for industrial automation, agricultural vehicles, and heavy machinery where reliable CAN communication is essential.

Quality and Reliability

As a part of Texas Instruments' automotive products, the TCAN1042VDRBTQ1 is manufactured to meet stringent quality standards. It is AEC-Q100 qualified, providing assurance of its performance and longevity in automotive applications. The device also supports silent mode operation, in which the transmitter is disabled, allowing for the diagnosis and monitoring of the CAN bus without influencing the traffic.

Package and Availability

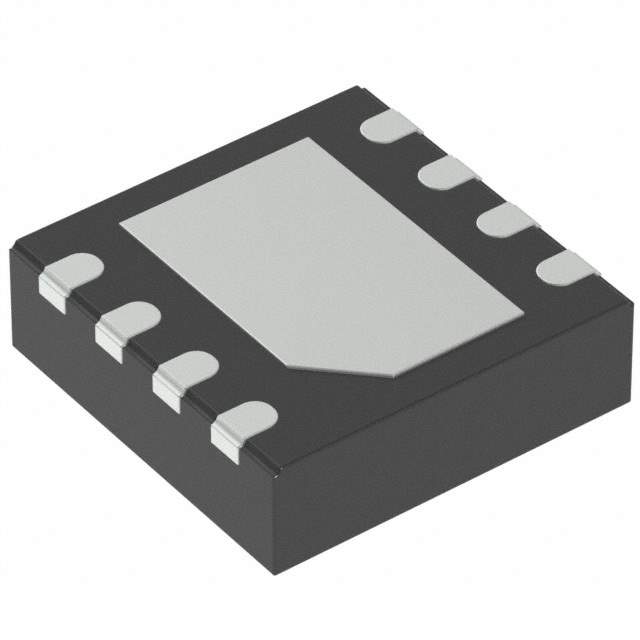

The TCAN1042VDRBTQ1 is available in a compact 8-pin VSON package, optimized for space-constrained applications. For design flexibility, the transceiver's pin assignments are compatible with the industry-standard definitions, facilitating easy integration into existing designs and PCB layouts.
