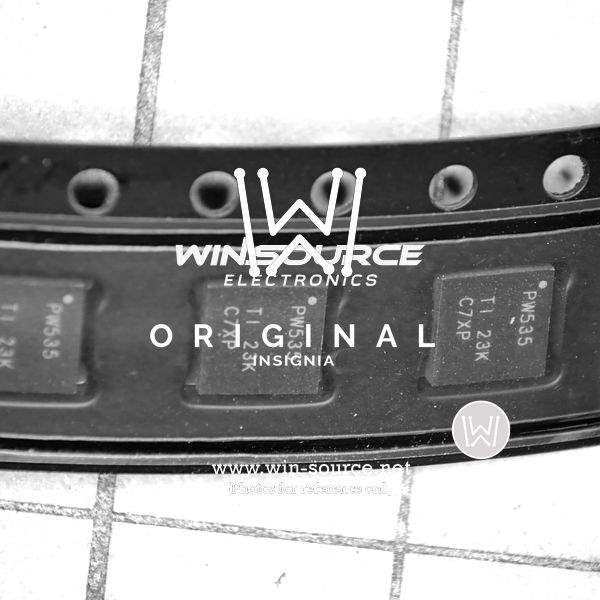

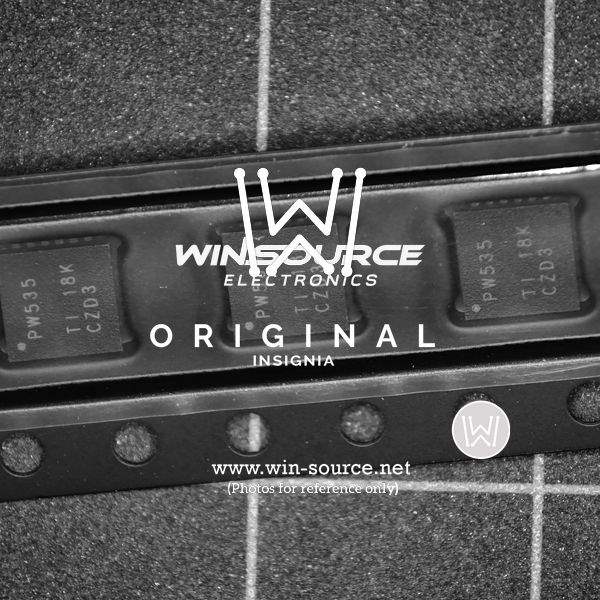

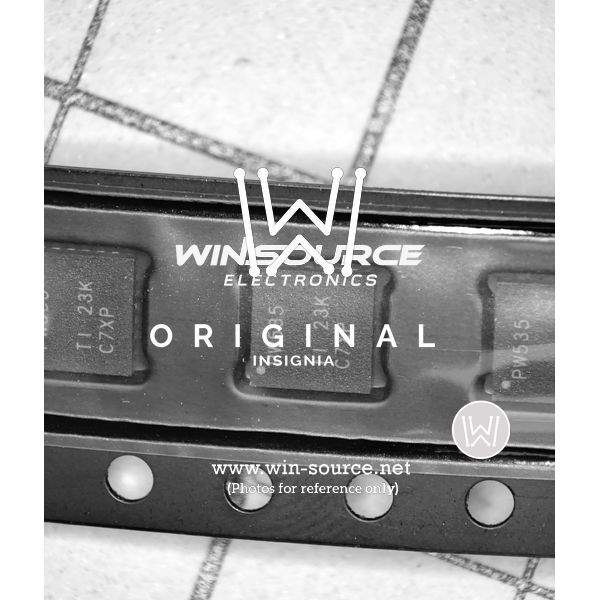

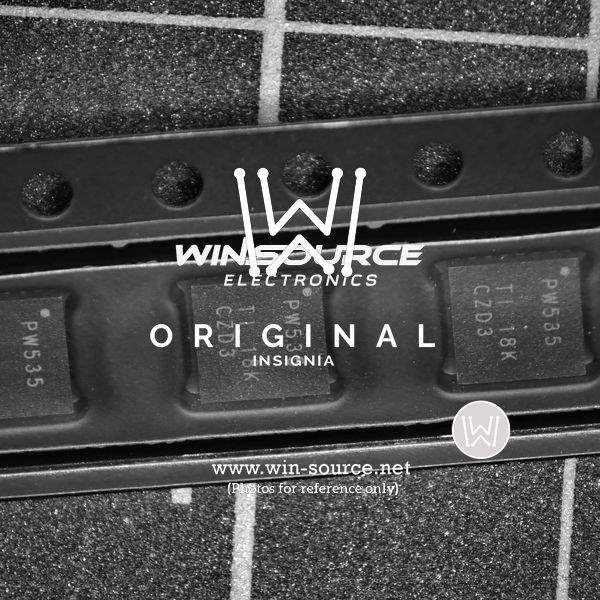

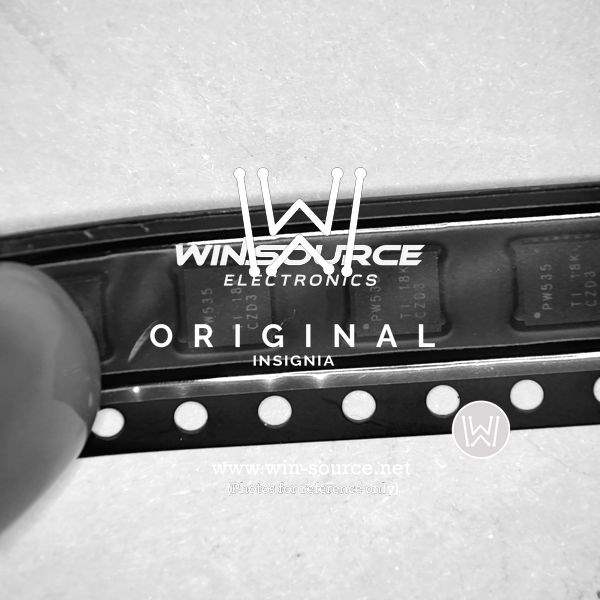

Product Overview: TCA9535RTWR

The TCA9535RTWR is a versatile remote I/O expander brought to you by Texas Instruments, a global semiconductor company that designs and manufactures a wide range of integrated circuits. This particular chip is part of the TCA9535 series, which is known for its reliability and performance in extending the number of I/O pins available to a microcontroller or microprocessor.

The device operates over an I2C bus and provides 16-bit General Purpose parallel Input and Output (GPIO) expansion. It is ideal for applications where additional I/Os are needed. The bidirectional I/O ports allow for easy and flexible integration into a variety of electronic systems.

The TCA9535RTWR is housed in a small 24-pin TSSOP (Thin Shrink Small Outline Package), making it suitable for space-constrained applications. It supports a wide supply voltage range from 1.65V to 5.5V, which allows it to be used with both 3.3V and 5V logic levels, thereby providing the versatility needed to interface with modern microcontrollers.

One of the key features of the TCA9535RTWR is its built-in interrupt function, which can be triggered by an input change, eliminating the need for continuous polling by the host processor and thus saving power. This makes it an excellent choice for power-sensitive applications. Moreover, each I/O port can be configured as an input or output, providing a high degree of flexibility in system design.

The device also features an active-low reset input that clears the registers and sets the device to its default state, which is especially useful for system initialization and recovery. Additionally, the TCA9535RTWR offers robust ESD protection and latch-up performance, ensuring reliable operation even in harsh environments.

Overall, the TCA9535RTWR from Texas Instruments is an excellent choice for designers looking to expand the I/O capabilities of their systems without compromising on space, power efficiency, or reliability.
