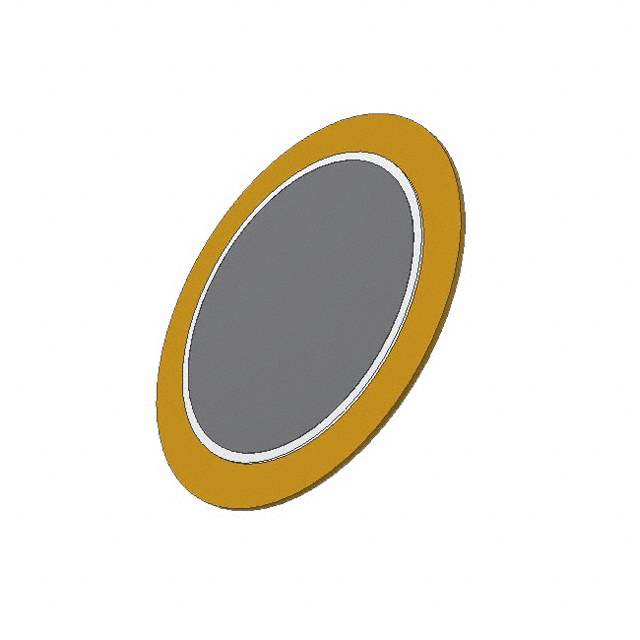

AB1560B Real Image
Same model may have multiple batches, images only for reference.

AB1560B

Part No AB1560B
Manufacturer PUI Audio, Inc.
Catalog Buzzer Elements, Piezo Benders
Description BUZZER ELEMENT PIEZO 6KHZ 15MM / Audio Diaphragm Piezo 15Vp-p 5500Hz to 6500Hz Wire Lead
Datasheet
AB1560B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer PUI Audio, Inc.
Frequency 6kHz
Voltage Input MAX 15V p-p
Type Standard
Impedance 300 Ohm
Capacitance @ Frequency 12000pF @ 1kHz
Operating Temperature Range -20°C ~ 80°C
Dimension 0.591" Dia (15.00mm)
Termination None
Win Source Part Number 769453-AB1560B
Popularity Medium
Supply and Demand Status Limited
Family Name AB1560B
Introduction Date January 13, 2006
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AB1560B CAD Model

Description

The PUI Audio AB1560B series speaker is a 300 Ohm impedance audio component with a frequency of 6kHz and a capacitance of 12000pF @ 1kHz.

  • Sound Pressure Level: 80dB
  • Market Popularity: Medium
  • Voltage Input Maximum: 15V p-p
  • Dimensions: 0.591" Dia (15.00mm)
  • Estimated EOL Date: 2025
