The SN74LXC8T245RHLR is a versatile and robust 8-bit non-inverting bus transceiver designed by Texas Instruments. This high-performance integrated circuit is part of the advanced LXC family and is specifically engineered to address the needs for bi-directional voltage-level translation in multi-voltage digital system applications.

Key Features

• Voltage-Level Translation: Capable of translating voltages between 1.65V and 5.5V on both the A and B ports, making it ideal for interfacing between different logic levels.
• High-Speed Data Transfer: Supports data rates up to 24 Mbps, providing efficient and fast data transfer for a wide range of applications.
• Power-Off Protection: Equipped with Ioff support which ensures no damaging current will flow to or from the device when it is powered down.
• ESD Protection: Features robust electrostatic discharge (ESD) protection which exceeds JESD 22, ensuring reliability and longevity in harsh environments.
• Multiple Configurations: Flexible design allows for use in a variety of configurations, including 8-bit, dual 4-bit, or quad 2-bit.

Applications

The SN74LXC8T245RHLR is suitable for a broad range of applications where voltage-level translation is required. This includes, but is not limited to:

• Multivoltage systems
• Microprocessor or microcontroller interface
• Data communication systems
• Signal bridging for mixed-voltage designs

Package and Quality

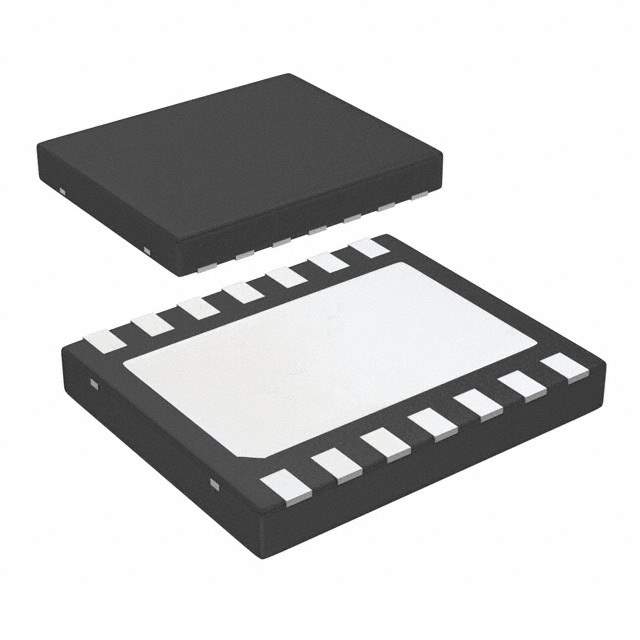

Presented in a refined VQFN (RHL) package, the SN74LXC8T245RHLR ensures a compact footprint on printed circuit boards, optimizing space without compromising performance. Texas Instruments' commitment to quality means that this product meets stringent industry standards, offering both reliability and excellence in operation.

Ordering Information

To procure the SN74LXC8T245RHLR for your next project, visit the Texas Instruments website or contact an authorized distributor. With its advanced features and proven performance, this bus transceiver is an excellent choice for designers looking to create efficient and high-performing digital systems.
