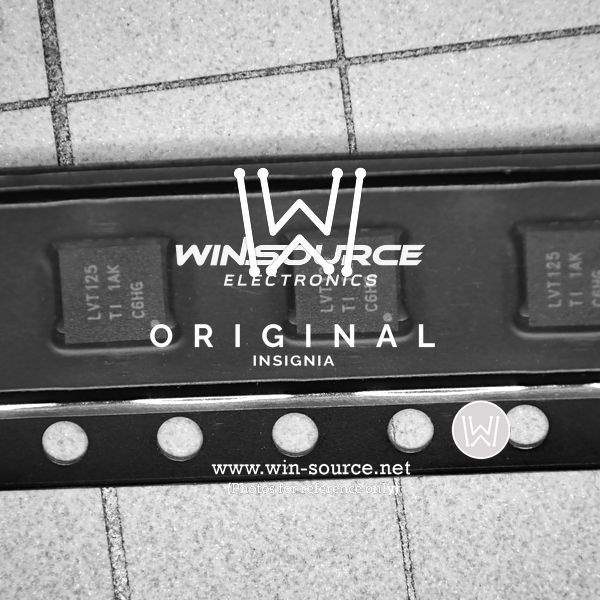

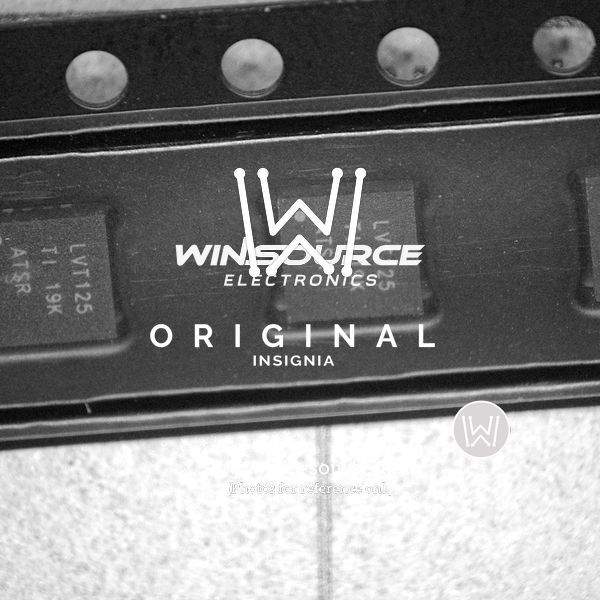

Product Description: SN74LVT125D from Texas Instruments

The SN74LVT125D is a high-quality quad bus buffer gate from Texas Instruments, a renowned global semiconductor design and manufacturing company. This product is part of Texas Instruments' extensive range of integrated circuits designed to cater to a vast array of electronic requirements.

Designed with four independent gates, the SN74LVT125D operates with a 3-state output which is controlled by the output-enable (OE) input. When OE is set to low, the device passes non-inverted data from the A inputs to the Y outputs. Conversely, when OE is set to high, the outputs are in the high-impedance state. This feature allows the SN74LVT125D to be used in advanced bus-interface applications where multiple data sources must interface to a single bus.

The SN74LVT125D operates over a broad supply voltage range of 2.7V to 3.6V, making it versatile for various applications. Additionally, it features a maximum input and output low voltage of 0.8V and a maximum input and output high voltage of 2V, ensuring reliable operation.

One of the key features of the SN74LVT125D is its low power consumption, making it an excellent choice for power-sensitive applications. It also supports a wide operating temperature range (-40°C to 85°C), making it suitable for use in harsh environments. Furthermore, the device is available in a compact 14-pin SOIC package, providing a space-efficient solution for your electronic circuitry needs.

With its robust design and high performance, the SN74LVT125D from Texas Instruments is an excellent choice for designers and engineers seeking a reliable, high-quality quad bus buffer gate. It exemplifies Texas Instruments' commitment to delivering innovative and efficient semiconductor solutions.
