SN74LVC86DBLE Quadruple 2-Input Exclusive-OR Gate

The SN74LVC86DBLE from Texas Instruments is a high-performance, quadruple 2-input exclusive-OR gate that operates from a wide voltage range of 2.7V to 3.6V. This integrated circuit is designed to accommodate the low-voltage and power requirements of modern-day electronic components while maintaining compatibility with mixed-voltage systems.

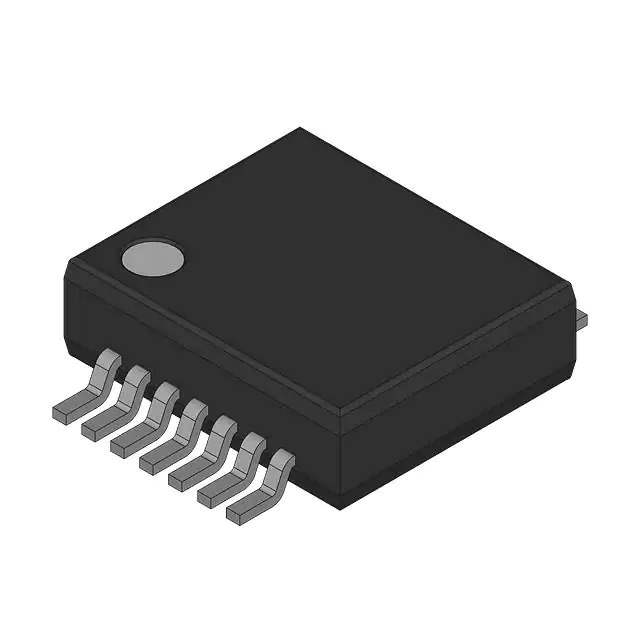

Enclosed in a compact SSOP (Shrink Small-Outline Package), the SN74LVC86DBLE is optimized for space-constrained applications without compromising on functionality. With its small footprint, this device is ideal for portable electronics, consumer gadgets, and embedded systems where board real estate is at a premium.

The SN74LVC86DBLE boasts a robust design that ensures high drive capability, allowing it to drive larger loads with ease. Its outputs can interface with a wide range of other devices, thanks to its LVC (Low-Voltage CMOS) technology, which provides low power dissipation yet high switching speeds. This technology also allows for bidirectional use without the need for external pull-up or pull-down resistors, simplifying design and reducing additional component requirements.

One of the key features of this product is its Schmitt-trigger action at all inputs, which makes the circuit tolerant to slower input rise and fall times. This feature enhances the device's performance in environments with noisy signals, ensuring reliable operation even in the presence of electrical disturbances.

Additionally, the SN74LVC86DBLE supports down-voltage interfacing, which means it can be used to interface with devices operating at lower voltages, thereby providing system designers with greater flexibility in mixed-voltage environments. Furthermore, its Ioff support ensures that the device is protected against potential damage from excess current, making it more robust in the face of unexpected power-down situations.

With its impressive features such as low power consumption, high speed, and interfacing capabilities, the SN74LVC86DBLE from Texas Instruments is a versatile choice for designers looking to implement exclusive-OR logic functions in their digital circuit designs.
