The SN74LVC74ADRE4 from Texas Instruments is a high-performance, dual positive-edge-triggered D-type flip-flop integrated circuit. This device is part of the LVC (Low-Voltage CMOS) family, which is well-known for its low power consumption and high-speed operation. The SN74LVC74ADRE4 is designed to operate from a 1.65 V to 3.6 V power supply, making it suitable for interfacing with both 3.3 V and 2.5 V logic levels, as well as battery-powered applications.
The device features two independent D-type flip-flops with individual clear and preset inputs. The clear and preset inputs allow for greater flexibility in controlling the state of the flip-flops, which is essential for a wide range of digital applications, including data storage, data transferring, frequency division, and counters.
One of the key attributes of the SN74LVC74ADRE4 is its ability to support high-speed operations while maintaining low power dissipation. The flip-flop has a typical clock-to-output (tCO) time of just 6.5 ns at 3.3 V, which is indicative of its swift response to changing inputs. Furthermore, the device is characterized for operation from -40°C to 85°C, ensuring reliable performance across a wide range of environmental conditions.

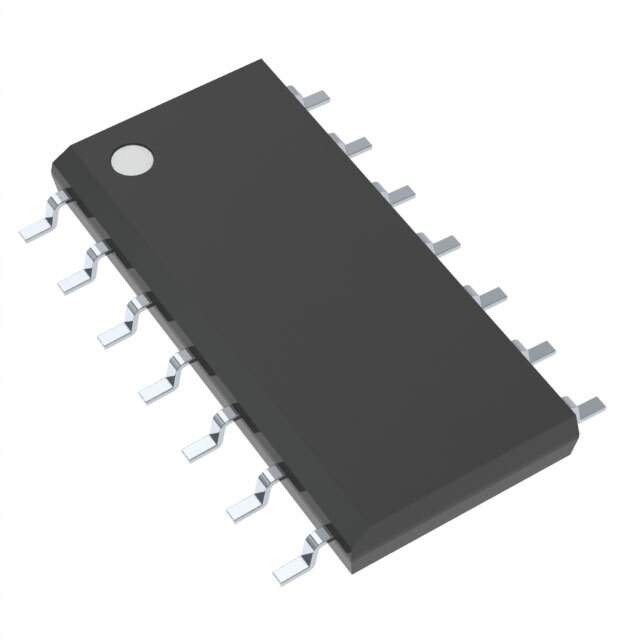

The SN74LVC74ADRE4 is offered in a compact 14-pin SOIC package, which is conducive to space-constrained applications. Its small footprint and the fact that it is RoHS compliant make it an environmentally friendly choice for modern electronic systems. Additionally, the device supports the standard set of features such as 8 mA output drive at 3.3 V, ±24 mA output drive at 3.3 V, and input hysteresis for improved noise margins.
In summary, the SN74LVC74ADRE4 from Texas Instruments is a versatile, high-speed, low-power dual D-type flip-flop that is ideal for a multitude of digital applications where efficient data handling and storage are crucial. Its robustness, combined with low operational voltage requirements, makes it a prime choice for designers looking to optimize their digital circuit designs.
