The SN74LVC3G06YZAR is a high-performance, triple inverter gate manufactured by Texas Instruments. This device is designed to operate from a 1.65 V to 5.5 V V_CC supply, making it suitable for a wide range of applications, including those that interface with 5V systems. It is part of the LVC family, which is known for low-voltage operation and high-speed interfacing.

Each of the three inverters in the SN74LVC3G06YZAR is logically independent and features open-drain outputs. This configuration allows for the implementation of wired-OR logic gates, where multiple outputs can be tied together to perform more complex logic functions. It also enables the device to be used in applications requiring a higher voltage output than V_CC, provided that the maximum tolerable voltage for the output transistor is not exceeded.

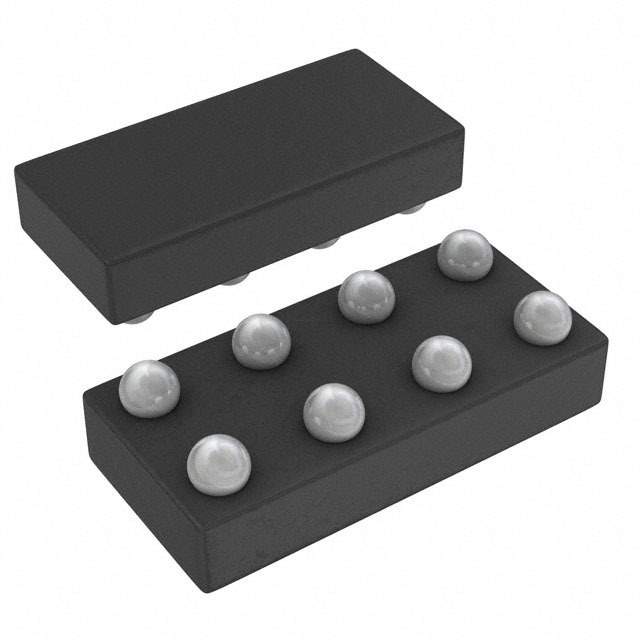

The device is characterized for operation from -40°C to 85°C, making it reliable in a variety of environmental conditions. The SN74LVC3G06YZAR is available in a compact 14-pin DSBGA package, which is ideal for space-constrained applications.

Key features of the SN74LVC3G06YZAR include:

• Supports 5-V V_CC Operation
• Inputs Accept Voltages to 5.5 V
• Max t_pd of 3.4 ns at 3.3 V
• Low Power Consumption, 10-µA Max I_CC
• ±24-mA Output Drive at 3.3 V
• ICCU (Idle-State Supply Current) of 10 µA Max
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22

With its low power consumption and high-speed operation, the SN74LVC3G06YZAR is an excellent choice for interfacing and logic-level translation applications that require the performance and reliability that Texas Instruments is known for. Whether used in consumer electronics, automotive systems, or industrial controls, this triple inverter gate provides the functionality and robustness needed for complex digital circuit designs.
