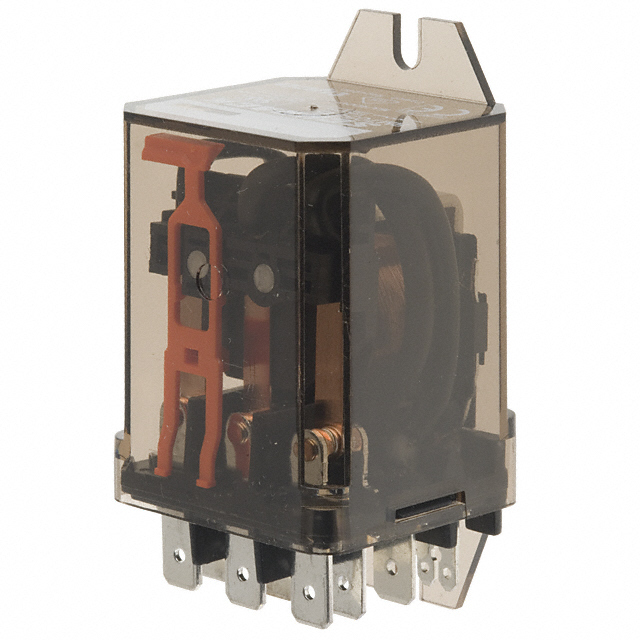

Same model may have multiple batches, images only for reference.
RSL1AB4ND Schneider Electric – Price, Stock & Datasheet

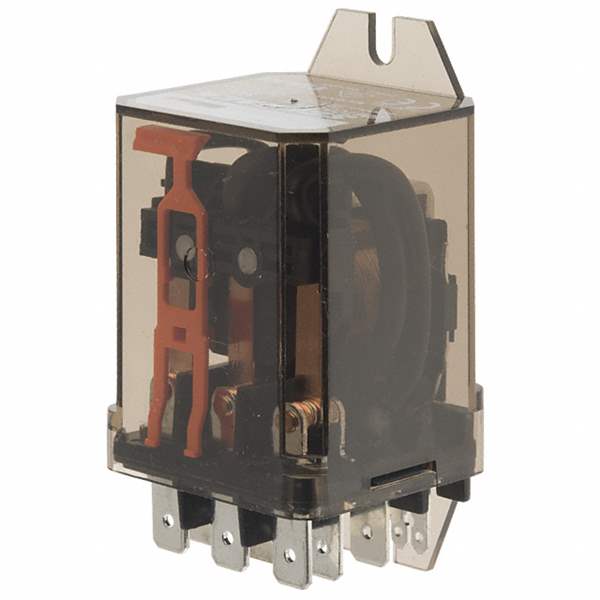

Same model may have multiple batches, images only for reference.

RSL1AB4ND

Part No RSL1AB4ND
Manufacturer Schneider Electric
Catalog Power Relays, Over 2 Amps
Description HARMONY, SLIM INTERFACE PLUG-IN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Socketable
Coil Voltage 60VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6 A
Switching Voltage 277VAC - Max
Load - Max Switching 1662VA
Coil Current 3.6 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 45 VDC
Must Release Voltage 3 VDC
Operate Time 12 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Approval Agency CSA, EAC, UL
Relay Type General Purpose
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1549468-RSL1AB4ND
Ultra Librarian 3D Model Ultra Librarian RSL1AB4ND CAD Model
