The SN74LVC1G373YZTR is a single D-type latch with a 3-state output designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This high-performance, low-voltage CMOS device is part of the 74LVC family, which is known for its low power consumption and high-speed operation.

Key Features

• IC Type: Single D-type Latch with 3-State Output
• Logic Family: 74LVC
• Operating Voltage: 1.65 V to 5.5 V
• Output Drive Capability: ±24 mA at 3.3 V
• Propagation Delay Time: Approximately 3.4 ns at 3.3 V, 5 pF

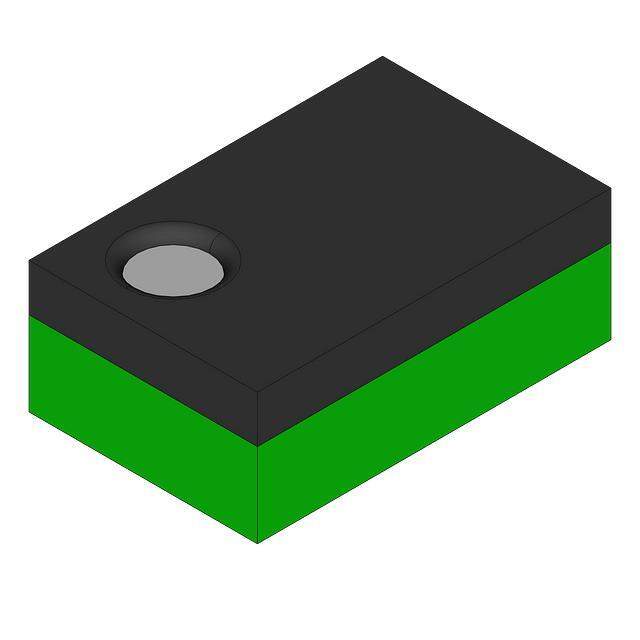

• Package: DSBGA
• Mounting Type: Surface Mount
• Temperature Range: -40°C to +85°C

Product Description

The SN74LVC1G373YZTR is a transparent D-type latch that features a latch-enable (LE) input and an output-enable (OE) input. When LE is high, the Q output follows the data (D) input. When LE is taken low, the Q output is latched at the level of the D input. Meanwhile, when OE is low, the Q output is active and reflects the latched data. However, when OE is high, the output is in a high-impedance state, effectively disconnecting it from the circuit, which is beneficial when multiple outputs are connected to a common bus.

Designed for use in a variety of applications, including data storage, addressable latching, and communications systems, this device offers a flexible and reliable solution for digital data storage and transfer. The SN74LVC1G373YZTR's wide operating voltage range and high-speed operation make it suitable for interfacing with microprocessors and other logic systems that operate at different voltage levels.

Furthermore, the device is offered in a small DSBGA package, making it ideal for space-constrained applications. The SN74LVC1G373YZTR is also characterized for operation from -40°C to +85°C, ensuring reliable performance across a broad range of temperature conditions.

Applications

• Data storage systems
• Addressable latching
• Communications systems
• Microprocessor and logic system interfaces
