The SN74LV1T126DCKR from Texas Instruments is a high-performance, single-line buffer that offers a compact and efficient solution for a wide range of applications. This particular device is part of the 74LV family, which is known for its low-voltage operation and low-power consumption, making it ideal for battery-powered and portable devices.

Key Features

• Operating Voltage: The buffer operates at a voltage range of 1.65V to 5.5V, providing flexible power compatibility for various system designs.
• High Drive: It can drive up to ±24-mA at the output, allowing it to handle a substantial load while maintaining signal integrity.
• Low Power Consumption: With its low static power consumption and its ability to operate at low voltages, the SN74LV1T126DCKR is designed for power-sensitive applications.
• Schmitt-Trigger Input: The buffer features a Schmitt-trigger input that provides a hysteresis which enhances noise immunity and allows for slow input transition rates, making it suitable for noisy environments.
• 5-Pin SC70 Package: The device comes in a tiny 5-pin SC70 package, which is perfect for space-constrained applications.

Applications

The versatility of the SN74LV1T126DCKR makes it a great choice for a variety of electronic systems. It is commonly used in:

• Signal buffering and isolation
• Level shifting between different logic levels
• Driving heavy loads
• Portable and battery-powered devices
• Consumer electronics
• Telecommunication infrastructure

Reliability and Quality

Texas Instruments is renowned for its commitment to quality and reliability, and the SN74LV1T126DCKR is no exception. It is designed and manufactured to meet the highest industry standards, ensuring stable performance in a variety of conditions and applications.

Ordering Information

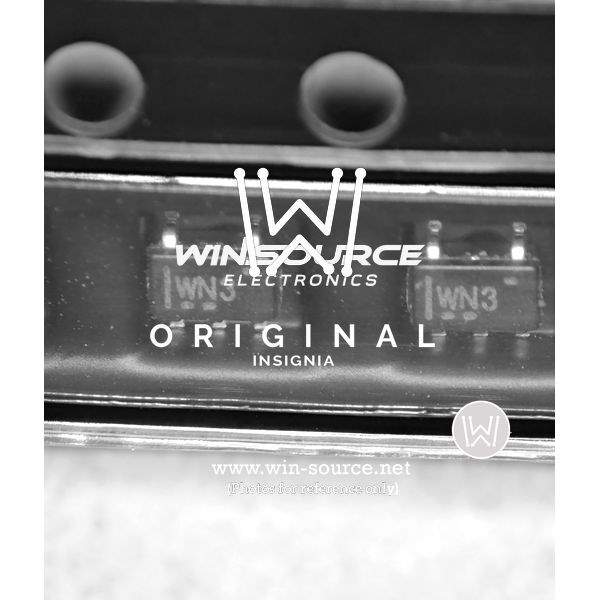

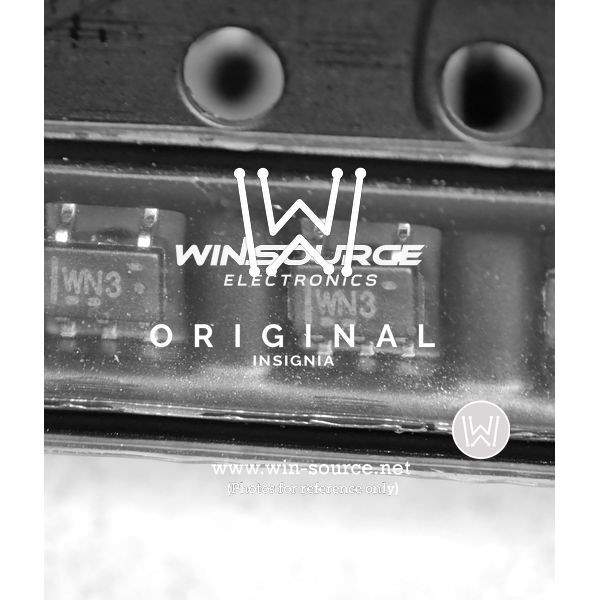

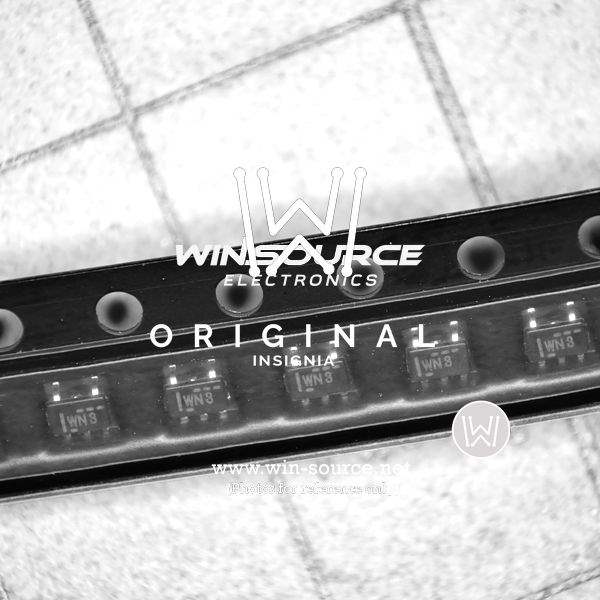

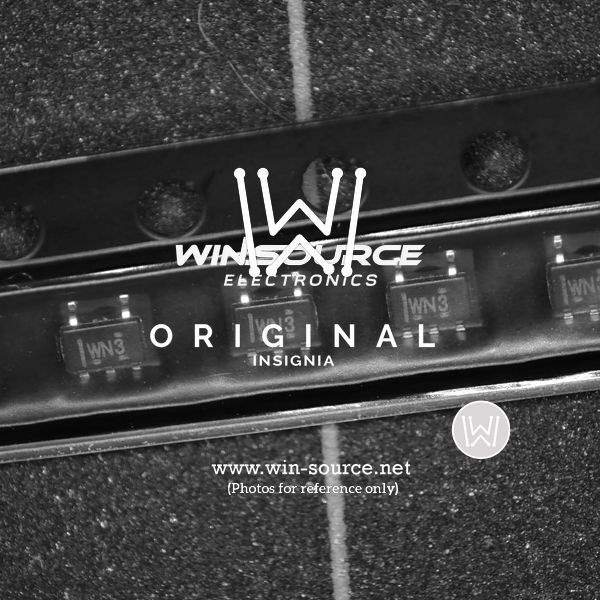

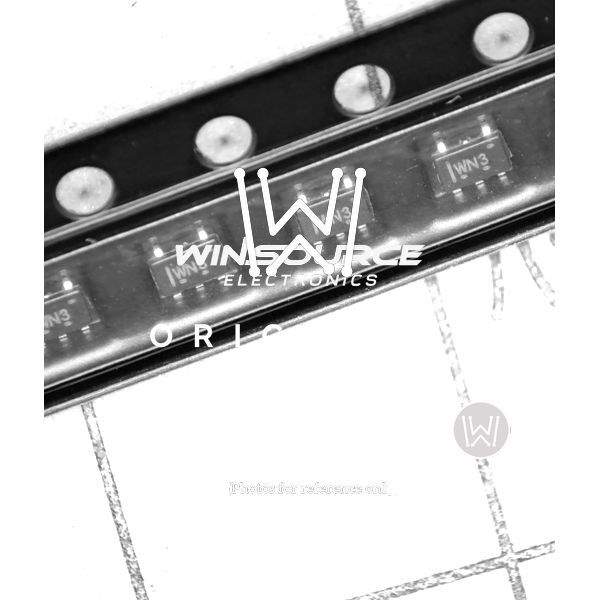

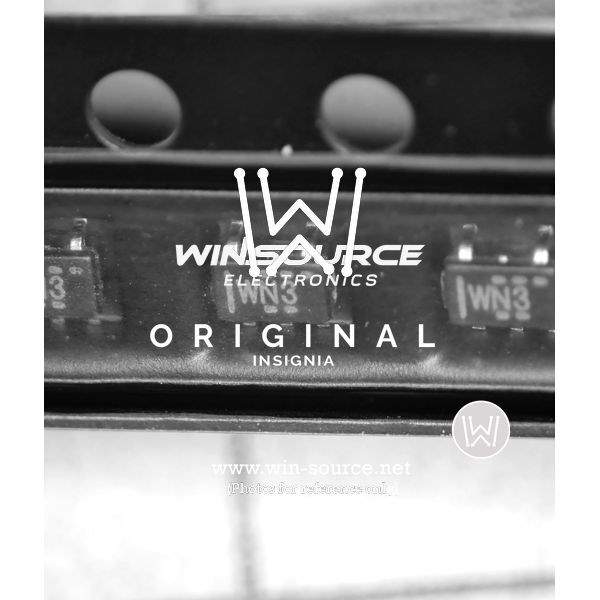

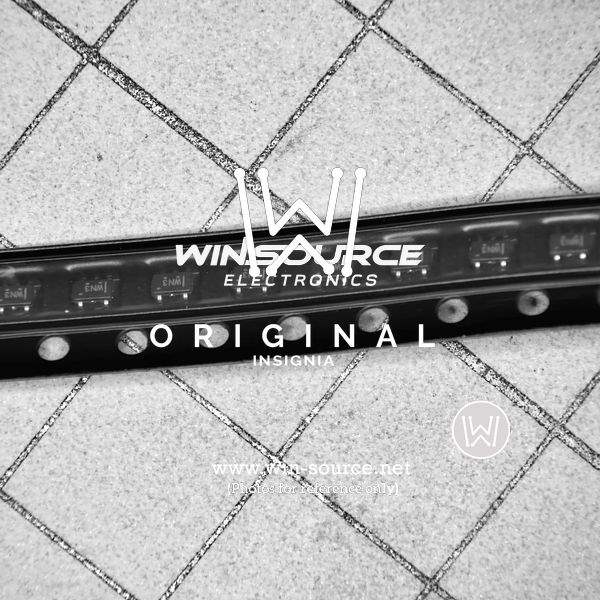

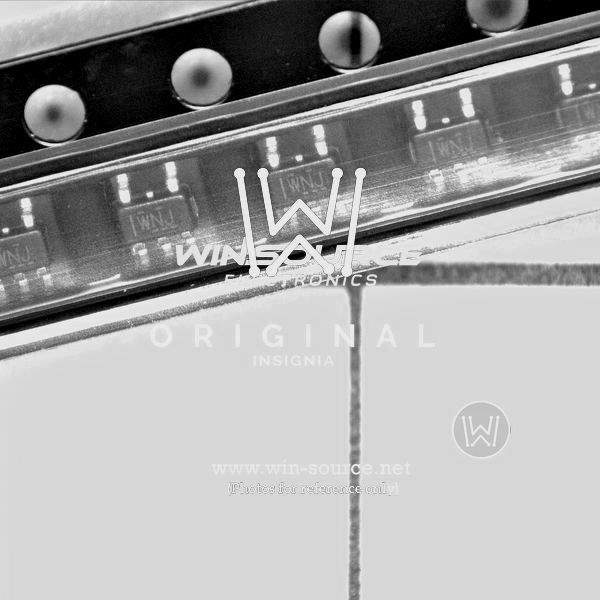

The part number SN74LV1T126DCKR is available for ordering from Texas Instruments and authorized distributors. It is supplied in tape and reel packaging, which is suitable for automated assembly processes, ensuring efficient manufacturing and scalability for high-volume production.
