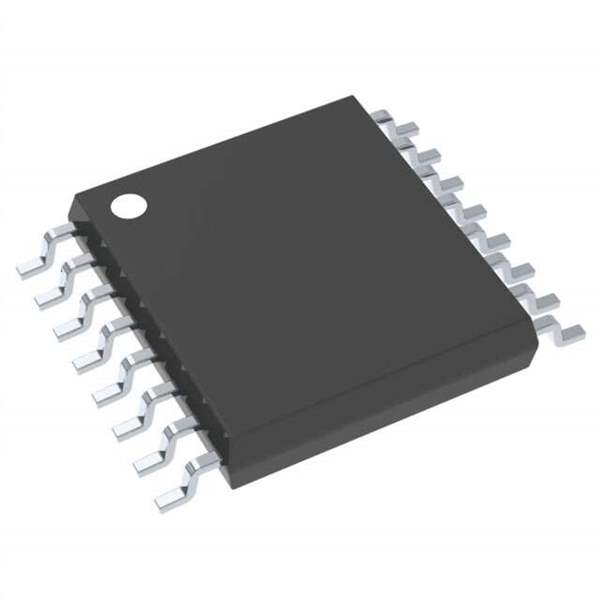

Product Overview: SN74HC4060PWT by Texas Instruments

The SN74HC4060PWT is a high-performance integrated circuit designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This advanced IC is part of the 74HC series and is a 14-stage binary counter with an integrated oscillator. With its robust design and versatile functionality, the SN74HC4060PWT is a perfect choice for a wide range of electronic applications, including timing, frequency division, and event counting.

Key Features

• Integrated Oscillator: The SN74HC4060PWT features a built-in oscillator function that requires only a resistor and a capacitor to set the desired oscillation frequency. This on-chip oscillator can be used as a precision timing source, eliminating the need for external clock sources in many applications.
• High-Speed Operation: This IC is capable of high-speed operation, making it suitable for fast-paced electronic systems where quick response times and efficient processing are critical.
• Wide Operating Voltage: The device operates over a broad voltage range from 2V to 6V, providing flexibility in various power environments and compatibility with TTL (Transistor-Transistor Logic) levels.
• Low Power Consumption: Designed with power efficiency in mind, the SN74HC4060PWT consumes minimal power, which is ideal for battery-operated and portable devices.
• Counter Design: The 14-stage binary counter allows for long division ratios, making it an excellent choice for time-delay generation and frequency division applications.

Applications

The versatile nature of the SN74HC4060PWT lends itself to a wide array of applications, including:

• Consumer Electronics
• Industrial Timing Controls
• Waveform Generation
• Signal Processing
• Embedded System Clocks

Product Specifications

The SN74HC4060PWT is available in a TSSOP (Thin Shrink Small Outline Package) with 16 pins, providing a compact footprint for space-constrained applications. The device also features standard CMOS technology, which ensures high noise immunity and low static power consumption. Its operating temperature range is from -40°C to 85°C, allowing reliable performance in a wide range of environmental conditions.

For detailed information, including pin configurations, timing diagrams, and electrical characteristics, please refer to the official Texas Instruments datasheet for the SN74HC4060PWT.
