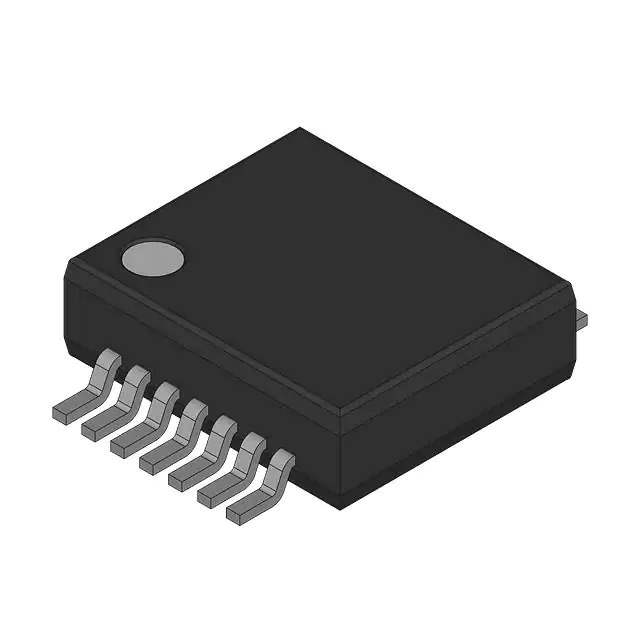

The SN74HC393DB from Texas Instruments is a high-performance, dual 4-bit binary counter integrated circuit, designed for use in a wide array of digital applications. This IC is part of the 74HC family, which is well-known for its high-speed CMOS technology. The SN74HC393DB is especially suitable for those applications requiring a reliable counting solution with medium-speed operation.

Key Features

• Counting Sequence: The device features two individual counters with a binary sequence, providing versatility in counting operations.
• High-Speed Performance: It operates at a typical frequency of up to 70 MHz, ensuring swift response times for counting applications.
• Wide Operating Voltage: The SN74HC393DB can function over a broad voltage range from 2V to 6V, making it adaptable to various power supply levels.
• Output Drive Capability: This counter can drive up to 10 LSTTL loads, which allows for direct interfacing with numerous logic families.
• Low Power Consumption: The device benefits from CMOS technology, which ensures low power dissipation.

Applications

The versatility of the SN74HC393DB makes it an ideal choice for a variety of applications, including:

• Frequency division
• Time-delay generation
• Event counting
• Digital timers and clocks
• Sequential state machines

Product Specifications

Available in a small-outline package, the SN74HC393DB is designed for optimized space utilization on printed circuit boards. It features a dual-in-line 14-pin configuration which allows for easy integration into existing designs. The IC is characterized for operation from -40°C to 85°C, ensuring reliable performance in a range of environmental conditions.

Quality and Reliability

Texas Instruments is committed to delivering high-quality and reliable components. The SN74HC393DB is no exception, undergoing rigorous testing to meet stringent industry standards for performance and longevity. Users can trust this component for consistent operation and durability in their electronic projects.
