SN74CBT16211DGGR by Texas Instruments

The SN74CBT16211DGGR is a high-performance integrated circuit designed and manufactured by Texas Instruments, a global leader in semiconductor solutions. This IC is part of the CBT (Crossbar Switch Technology) family of devices, which are known for their high-speed digital signal switching capabilities. The SN74CBT16211DGGR is particularly suitable for applications that require the efficient routing of digital signals, such as telecommunications, networking, and high-speed data processing systems.

Key Features:

• 24-Bit Bus Switch: The device features a 24-bit bus switch with 12-bit bus exchange switches. This allows for flexible data routing and provides the ability to switch signals with minimal propagation delay.
• Low On-State Resistance: The switch has a low on-state resistance (Ron) typically around 5 ohms, which contributes to less signal distortion and better performance.
• 5-V Tolerant Inputs and Outputs: Inputs and outputs are designed to be 5-V tolerant, enabling the device to interface with a wide range of logic levels and ensuring compatibility with legacy systems.
• Low Power Consumption: The SN74CBT16211DGGR is optimized for low power consumption, making it an energy-efficient choice for modern electronic designs.
• High-Speed Operation: With fast switching speeds, the device is capable of handling high data throughput, which is essential for today's high-speed communication protocols.
• Flow-Through Architecture: The pinout is designed for a flow-through architecture to minimize signal skew and simplify PCB layout.

Technical Specifications:

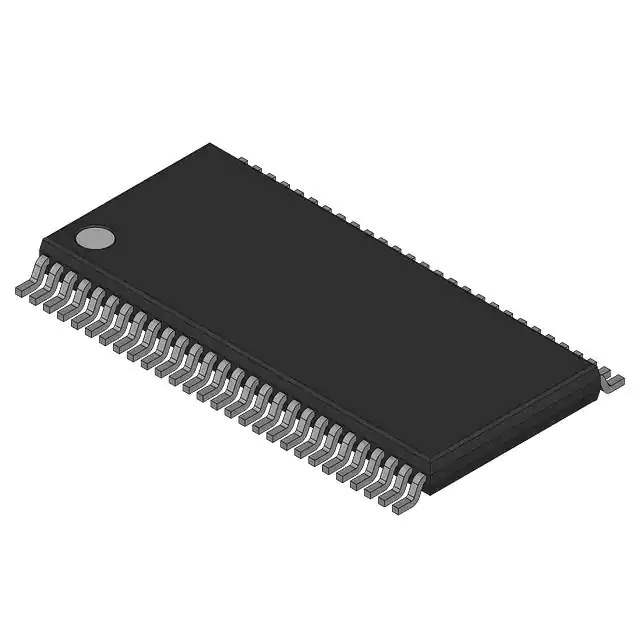

• Package: The device comes in a TSSOP (Thin Shrink Small Outline Package) with 48 pins, providing a compact footprint for space-constrained applications.
• Operating Voltage: It operates over a wide range of supply voltages, from 4.5 V to 5.5 V, allowing for flexible integration into various system voltages.
• Temperature Range: The SN74CBT16211DGGR is designed to operate within an industrial temperature range, ensuring reliability and performance under varying environmental conditions.

The SN74CBT16211DGGR is a testament to Texas Instruments' commitment to providing advanced, reliable, and high-quality components for the electronics industry. With its robust feature set and performance specifications, this product is an excellent choice for designers looking to implement efficient and high-speed signal routing in their systems.
