SN74AXCH4T245RSVR - Texas Instruments 4-Bit Dual-Supply Bus Transceiver

The SN74AXCH4T245RSVR from Texas Instruments is a state-of-the-art 4-bit dual-supply bus transceiver designed to facilitate seamless data transfer between two different voltage domains. This robust component is part of the Texas Instruments' SN74AXC family, which is renowned for its high-speed, level-shifting capabilities.

Key Features:

• Wide Voltage Range: The device supports a wide range of operating voltages, with V_CCA ranging from 0.65 V to 3.6 V and V_CCB from 1.2 V to 3.6 V, making it versatile for interfacing between low-voltage and higher-voltage logic circuits.
• High-Speed Data Transfer: With its capability to support high-speed data transfer, the SN74AXCH4T245RSVR ensures swift and efficient communication between devices, which is particularly beneficial in high-performance computing and networking applications.
• Direction Control: The direction of data flow is controlled by the DIR input, allowing for flexible bidirectional operation.
• Output Enable: The OE (Output Enable) input allows the user to place the I/O ports in a high-impedance state, thereby facilitating the use of shared data buses.
• Low Power Consumption: The device is designed for low power consumption, which is critical for battery-powered and energy-efficient applications.
• Robust ESD Protection: It features robust Electrostatic Discharge (ESD) protection, ensuring the device's reliability and longevity in challenging environments.

Applications:

The SN74AXCH4T245RSVR is well-suited for a variety of applications that require voltage level translation or data transfer between two different voltage domains, such as:

• Mobile Phones
• Tablets
• Notebooks
• Data Communication Systems
• Networking Equipment

Package and Quality:

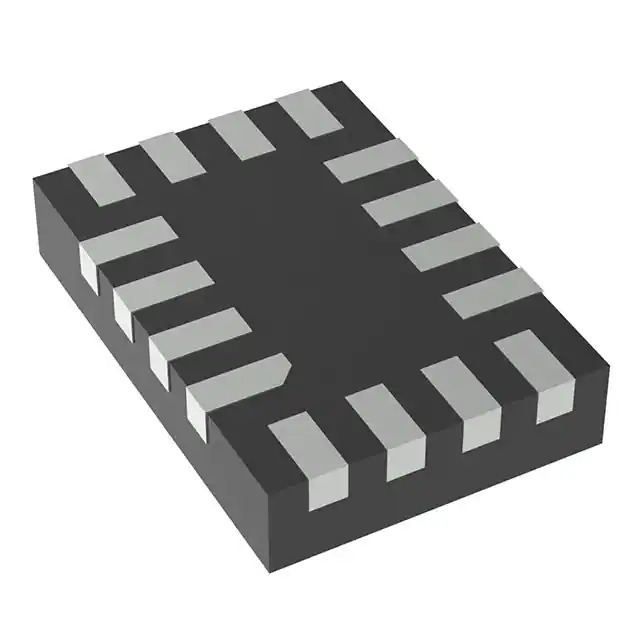

This component is offered in a compact UQFN package, which is highly space-efficient, making it an excellent choice for dense PCB layouts. Texas Instruments is committed to delivering high-quality products, and the SN74AXCH4T245RSVR is no exception, meeting stringent industry standards for performance and reliability.
