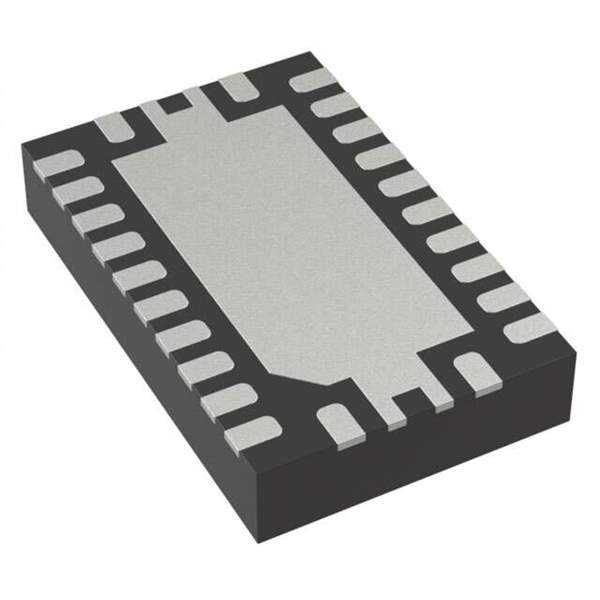

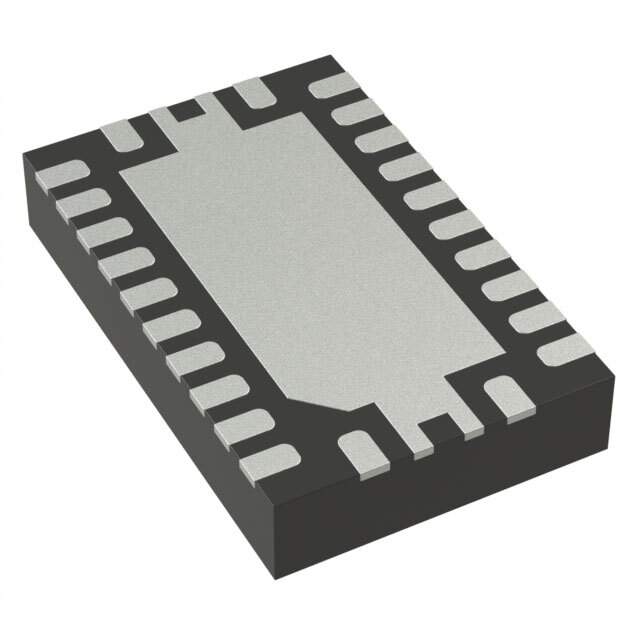

The SN74AXC8T245RHLR from Texas Instruments is a state-of-the-art, 8-bit non-inverting bus transceiver that comes in a robust VQFN (RHL) package. This device is designed to provide seamless voltage level translation that is ideal for applications requiring the interface between different domain voltages used in multi-voltage systems.

Key Features

• Wide Voltage Range: It operates over a broad voltage range of 0.65 to 3.6V on the A side and 1.2 to 3.6V on the B side, enabling versatile interfacing in mixed-voltage systems.
• High-Speed Data Transfer: With its capability to support up to 100-Mbps data rates, the SN74AXC8T245RHLR is suitable for high-performance applications.
• Low Power Consumption: The device is optimized for low power consumption, making it an excellent choice for power-sensitive applications.
• Direction Control: The direction of data flow is determined by the DIR input, while the OE input can disable the device's outputs to allow for multiple devices to share a common data bus.
• Robust ESD Protection: It features Ioff support and ESD protection exceeding JESD 22, ensuring data integrity and protection for sensitive circuitry.

Applications

The SN74AXC8T245RHLR is highly versatile and can be implemented in various applications, such as:

• Multi-voltage level translation for bus interfacing
• Server, telecom, and networking equipment
• Computers and peripherals
• Mobile phones and consumer electronics

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the SN74AXC8T245RHLR is no exception. It is designed and tested to meet the high standards expected of TI products, ensuring reliable performance in a wide range of environmental conditions.

Ordering and Packaging

The SN74AXC8T245RHLR is available in tape and reel packaging, facilitating easy integration into automated assembly processes. For ordering information, detailed specifications, and support resources, visit the Texas Instruments website or contact an authorized distributor.
