The SN74AUP3G14DCUR from Texas Instruments is a high-performance, triple Schmitt-trigger inverter chip designed for applications requiring low power consumption and high-speed operation. This integrated circuit is a part of TI's advanced ultra-low power (AUP) series, which is optimized for low-voltage operation, making it an ideal choice for battery-powered and portable devices.

Key Features

• Low Power Consumption: The device operates with a very low static power consumption, drawing less than 0.9 µA of current when idle. This feature significantly extends battery life in portable applications.
• Wide Operating Voltage Range: The SN74AUP3G14DCUR is designed to function across a broad voltage range of 0.8V to 3.6V, providing design flexibility for various voltage levels in complex systems.
• High-Speed Operation: Despite its low power usage, it does not compromise on speed, offering typical propagation delays of only 3.7 ns at 3.3V, which is suitable for high-speed signal processing tasks.
• Schmitt-Trigger Inputs: The Schmitt-trigger action at the inputs allows the chip to handle slow input transition rates with improved noise immunity, which is critical in noisy environments or when using long cables.

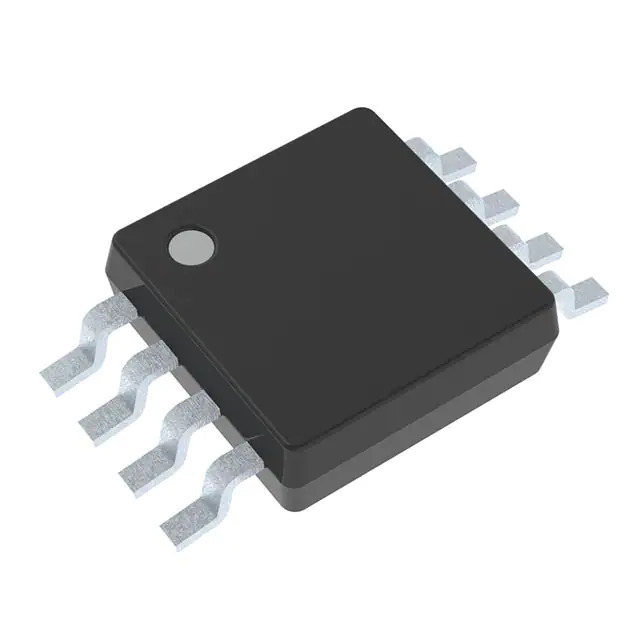

• Multiple Package Options: The product is available in a small 8-pin VSSOP (DCU) package, which is ideal for space-constrained applications.

Applications

The SN74AUP3G14DCUR is highly versatile and can be used in a variety of applications, including:

• Smartphones and tablets
• Portable medical devices
• Wearable technology
• Energy management systems
• IoT devices
• Logic level translation

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the SN74AUP3G14DCUR is no exception. It is manufactured to the highest standards, ensuring consistent performance and durability across a wide range of operating conditions.
