The SN74AUP1G74DQER from Texas Instruments is a single positive-edge-triggered D-type flip-flop with a direct clear input, belonging to the advanced ultra-low power (AUP) family of logic devices. This high-performance, silicon-gate CMOS device is designed to operate from a 0.8V to 3.6V V_CC supply, making it ideal for battery-powered and low-voltage applications.

Key Features:

• Low Power Consumption: The AUP technology ensures ultra-low static and dynamic power consumption, which significantly extends battery life in portable applications.
• High-Speed Operation: Despite its low-power nature, the SN74AUP1G74DQER does not compromise on speed, offering a typical t_pd of 3.5 ns at 3.3 V, making it suitable for high-performance systems.
• Wide Operating Voltage Range: With a V_CC operating range from 0.8V to 3.6V, the device supports a variety of power supply options and logic level requirements.
• Low Input Capacitance: The device features a low I_off support circuitry that disables the output, preventing damaging current backflow when the device is powered down.
• ESD Protection: It includes robust electrostatic discharge (ESD) protection, ensuring device longevity and reliability in sensitive applications.

Applications:

The SN74AUP1G74DQER is versatile and can be used in a wide range of applications. It is particularly well-suited for:

• Portable and battery-powered electronics
• Mobile phones and communication devices
• Embedded systems for industrial control
• Data storage and transfer
• Energy-harvesting applications

Package and Quality:

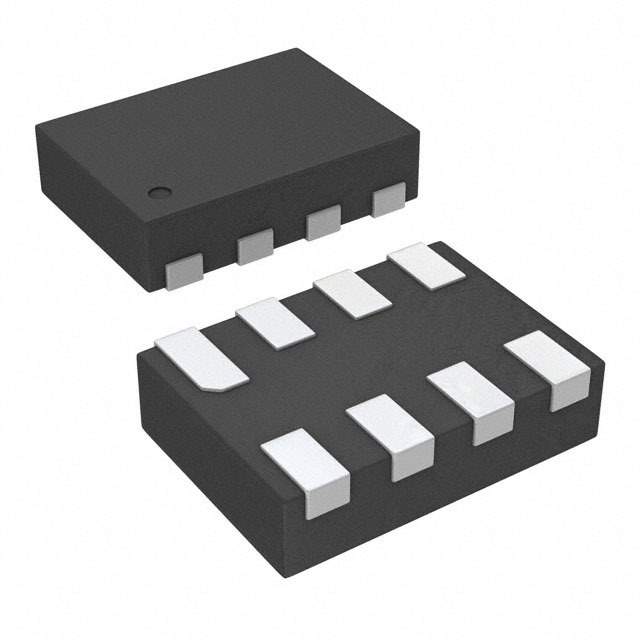

Offered in a compact 8-X2SON package, the SN74AUP1G74DQER is designed for space-constrained applications. Texas Instruments is committed to maintaining the highest quality and reliability standards, and this product is no exception, meeting or exceeding industry standards for performance and durability.
