Overview of SN74AHCT138PWG4

The SN74AHCT138PWG4 is a high-speed, 3-to-8 line decoder/demultiplexer manufactured by Texas Instruments. This integrated circuit is designed to facilitate the decoding of binary information for data routing, memory addressing, and various other digital control functions. It is a crucial component in digital systems where efficient data management is required.

Key Features

• Logic Family: The device belongs to the AHCT family, known for its advanced high-speed CMOS technology, providing a perfect balance between speed and power consumption.
• Operating Voltage: It operates within a range of 4.5V to 5.5V, making it compatible with typical TTL (Transistor-Transistor Logic) levels.
• Output Drive Capability: The SN74AHCT138PWG4 can drive up to 8mA at 5V, which is suitable for driving a wide array of logic inputs.

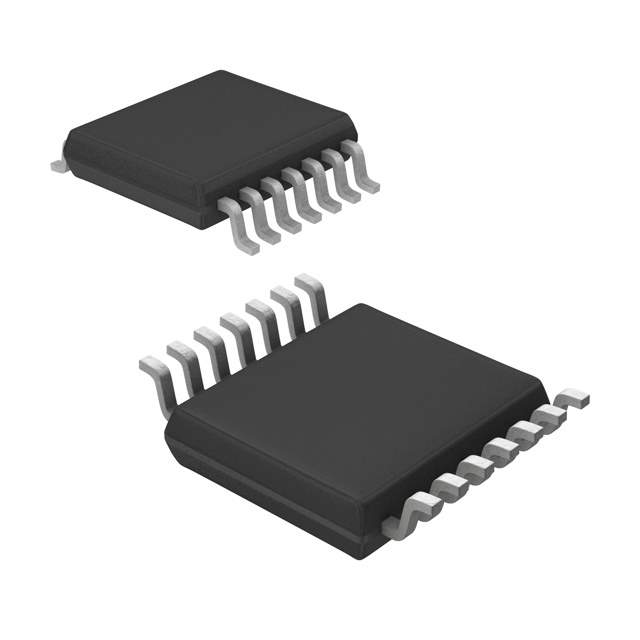

• Pin Configuration: It comes in a 16-pin TSSOP (Thin Shrink Small Outline Package) that is optimal for space-saving PCB design.
• Three Binary Select Inputs: With three select inputs (A, B, and C), it can decode up to eight unique outputs, making it versatile for complex operations.
• Multiple Enable Inputs: The device features two active-low and one active-high enable inputs, which further enhances its control flexibility.
• Demultiplexing Capability: It can be used as a demultiplexer by using the enable inputs as the data input.

Applications

The SN74AHCT138PWG4 is suitable for a wide range of applications across different industries. It is commonly used in:

• Data routing
• Memory address decoding
• Control logic for multiplexing
• Function selection in complex digital systems

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability. The SN74AHCT138PWG4 is no exception, as it is designed and manufactured to meet the highest industry standards. Customers can expect consistent performance and durability from this component, ensuring longevity and stability in their electronic projects.
