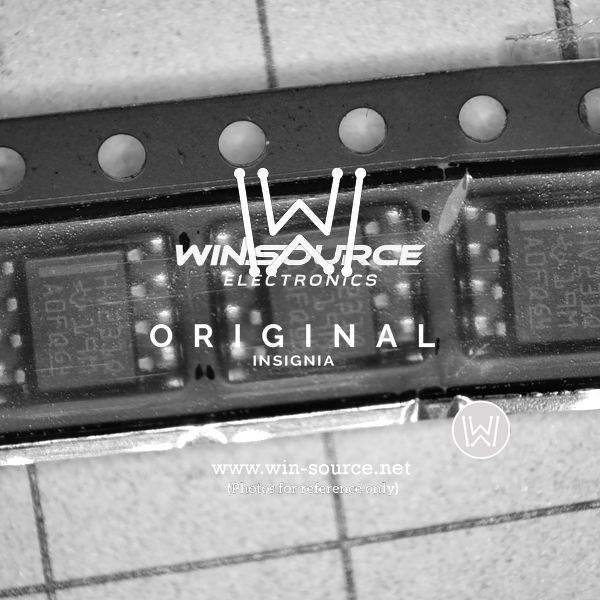

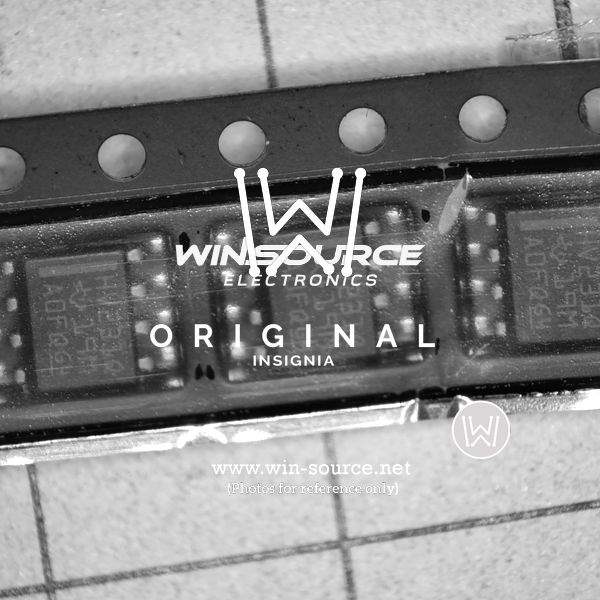

Product Overview: SN65HVD231QD from Texas Instruments

The SN65HVD231QD is a high-quality CAN (Controller Area Network) transceiver module designed and manufactured by Texas Instruments. This robust and efficient transceiver is specifically tailored for automotive and industrial communication networks that require high-speed data exchange, reliability, and fault tolerance.

Key Features

• Compatibility: The SN65HVD231QD is designed to be compatible with the requirements of the ISO 11898 standard, ensuring interoperability with other compliant CAN devices.
• High-Speed Performance: This transceiver is capable of transmitting and receiving data at speeds of up to 1 Mbps, making it suitable for high-speed CAN applications.
• Low Power Consumption: It features a low-current standby mode, which significantly reduces the power consumption when the network is not active, thereby extending the lifespan of battery-powered systems.
• Protection Features: The device includes protection against faults such as over-temperature and bus fault conditions, ensuring reliable operation under adverse conditions.
• Flexible Operating Conditions: The SN65HVD231QD operates over a wide range of supply voltages from 3.0V to 3.6V, accommodating various system requirements.

Applications

The SN65HVD231QD is an ideal choice for a variety of applications that require robust and reliable communication, including:

• Automotive networks such as body control modules, powertrain systems, and infotainment systems.
• Industrial automation systems where machinery and sensors need to communicate in real-time.
• Building automation and control systems that require a dependable data exchange network.
• Medical equipment and devices where accurate and uninterrupted data transmission is critical.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the SN65HVD231QD is no exception. It is built to meet the stringent requirements of automotive and industrial environments, ensuring long-term reliability and performance. With thermal shutdown and open-circuit fail-safe protection, this transceiver is designed to maintain communication integrity under challenging conditions.

In conclusion, the SN65HVD231QD from Texas Instruments is a versatile and dependable CAN transceiver that offers a combination of high-speed communication, low power consumption, and robust protection features, making it a top choice for engineers and designers in various fields.
